PI3526-00-LGIZ footprint, schematic symbol and 3D model by VICOR

Symbol

click to zoom

PCB Footprints

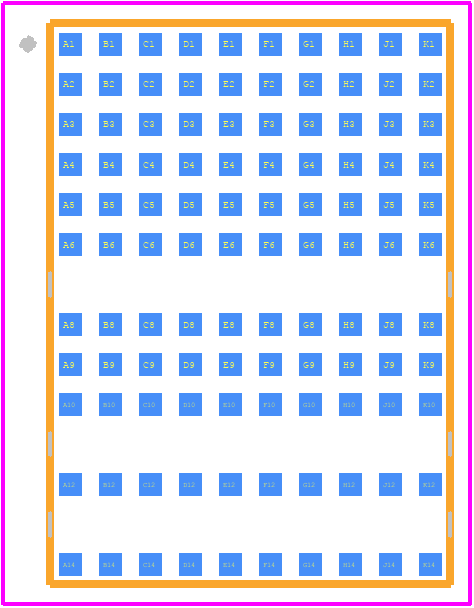

PI3526-00-LGIZ - VICOR PCB footprint - Other - Other - PI3526-00-LGIZ-1

click to zoom

3D Models

PI3526-00-LGIZ - VICOR - 3D model - Other - PI3526-00-LGIZ-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PI3526-00-LGIZ
Part Number PI3526-00-LGIZ
Manufacturer VICOR
Pin Count 110
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - PI3526-00-LGIZ-1
Released Date Jun 25, 2019
Last Modified Date Feb 3, 2026 7:08 AM UTC
Pinout / Pin List Click Here (Member Only)

PI3526-00-LGIZ Details

Manufacturer Part Number:
PI3526-00-LGIZ
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
LGA-140/110
Country Of Origin:
Thailand, USA
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
28 Weeks
Date Of Intro:
2017-12-13
Manufacturer:
Vicor Corporation
YTEOL:
7
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
CURRENT-MODE
Input Voltage-Max:
60 V
Input Voltage-Min:
30 V
Input Voltage-Nom:
48 V
JESD-30 Code:
R-XBGA-N110
Length:
14 mm
Number of Functions:
1
Number of Terminals:
110
Operating Temperature-Max:
120 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
18 A
Output Voltage-Max:
14 V
Output Voltage-Min:
6.5 V
Output Voltage-Nom:
12 V
Package Body Material:
UNSPECIFIED
Package Code:
LGA
Package Equivalence Code:
LGA110,10X14,40
Package Shape:
RECTANGULAR
Package Style:
GRID ARRAY
Seated Height-Max:
2.63 mm
Supply Voltage-Nom (Vsup):
48 V
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
742 kHz
Temperature Grade:
INDUSTRIAL
Terminal Form:
NO LEAD
Terminal Pitch:
1 mm
Terminal Position:
BOTTOM
Width:
10 mm

PI3526-00-LGIZ Frequently Asked Questions (FAQs)

Vicor recommends a 2-layer or 4-layer PCB with a solid ground plane and thermal vias to dissipate heat. A minimum of 2 oz copper thickness is recommended for optimal thermal performance.
To ensure reliable start-up, Vicor recommends a soft-start circuit or a ramp-up of the input voltage to prevent inrush currents. Additionally, a minimum input capacitance of 10uF is recommended to ensure stable operation.
The maximum allowed input voltage ripple for the PI3526-00-LGIZ is 10% of the nominal input voltage. Exceeding this limit may affect the module's performance and reliability.
The PI3526-00-LGIZ is rated for operation up to 85°C ambient temperature. However, Vicor recommends derating the output power by 1% per degree Celsius above 70°C to ensure reliable operation.
The PI3526-00-LGIZ has a built-in voltage sense pin (VS) that can be used to monitor the output voltage. The voltage sense pin is connected to an internal voltage divider that provides a 1/10 ratio of the output voltage.

Trust Checks

Expert Contribution

System Verified

Community Approved

PI3526-00-LGIZ Overview

Use the download button to access the PI3526-00-LGIZ schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like PI352, or try a keyword search, such as Switching Regulator or Controllers
