Vicor recommends a 4-layer PCB with a solid ground plane, and thermal vias under the module to dissipate heat. A thermal interface material (TIM) should be used between the module and the heat sink.
To ensure reliable start-up and shutdown, Vicor recommends a soft-start circuit to limit inrush current, and a voltage supervisor to monitor the input voltage and ensure the module is fully powered before enabling the output.
The PI3545-00-LGIZ is designed to operate within a specific input voltage range. Exceeding this range may affect the module's efficiency, output voltage regulation, and reliability. It is essential to ensure the input voltage is within the recommended range to guarantee optimal performance.
Vicor recommends using a scope to monitor the input and output voltages, as well as the current drawn from the input. Additionally, checking the module's thermal performance and ensuring proper PCB layout and thermal management can help identify and resolve issues.
The PI3545-00-LGIZ is designed to meet CISPR 22 and FCC Part 15 Class B emissions standards. To minimize EMI and RFI, Vicor recommends using a shielded enclosure, proper PCB layout, and filtering on the input and output lines.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI3545-00-LGIZ Overview

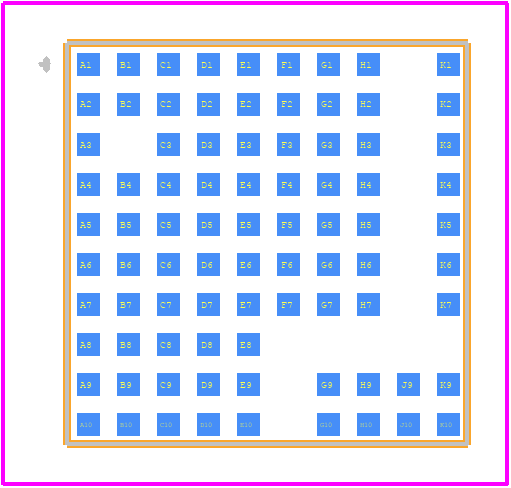

Use the download button to access the PI3545-00-LGIZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI354,
or try a keyword search, such as Switching Regulator or Controllers
