Vicor recommends a 4-layer PCB with a solid ground plane, and thermal vias under the module to dissipate heat. A minimum of 2 oz copper thickness is recommended. Additionally, a thermal interface material (TIM) should be used between the module and the heat sink.
To ensure reliable start-up and shutdown, Vicor recommends a soft-start circuit to limit inrush current, and a shutdown circuit that slowly discharges the output capacitors to prevent voltage spikes.
Operating the module outside of the recommended input voltage range can lead to reduced efficiency, increased heat generation, and potentially reduced lifespan. Vicor recommends operating the module within the specified input voltage range to ensure optimal performance and reliability.
Vicor recommends using a scope to monitor the input and output voltages, as well as the current sense pins. Additionally, checking the module's thermal performance and ensuring proper PCB layout and thermal management can help identify and resolve issues.
Yes, Vicor recommends following proper EMI/EMC design practices, such as using a shielded enclosure, minimizing loop areas, and using EMI filters to reduce radiated emissions. Additionally, the module's output should be decoupled from the input using a pi-filter or similar technique.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI3546-00-BGIZ Overview

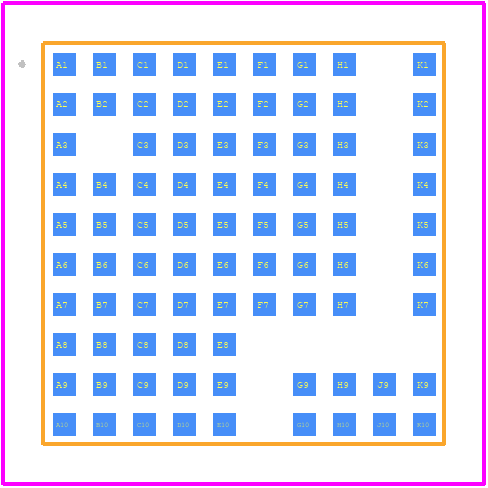

Use the download button to access the PI3546-00-BGIZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI354,
or try a keyword search, such as Switching Regulator or Controllers
