Vicor recommends a 4-layer PCB with a solid ground plane, and thermal vias under the module to dissipate heat. A thermal interface material (TIM) should be used between the module and the heat sink.
To ensure reliable start-up and shutdown, Vicor recommends a soft-start circuit to limit inrush current, and a shutdown circuit to discharge the output capacitors. The datasheet provides guidelines for these circuits.
The PI3741-00-LGIZ is designed to operate within a specific input voltage range. Operating outside this range may affect efficiency, output voltage regulation, and reliability. Vicor recommends using input voltage filtering and regulation to ensure a stable input voltage.
Vicor recommends using a systematic approach to troubleshoot issues, starting with visual inspection, then checking input voltage, output voltage, and current. Vicor also provides application notes and technical support for debugging assistance.
The PI3741-00-LGIZ is designed to meet CISPR 22 and FCC Part 15 Class B emissions standards. Vicor recommends using proper PCB layout, shielding, and filtering to minimize EMI and RFI.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI3741-00-LGIZ Overview

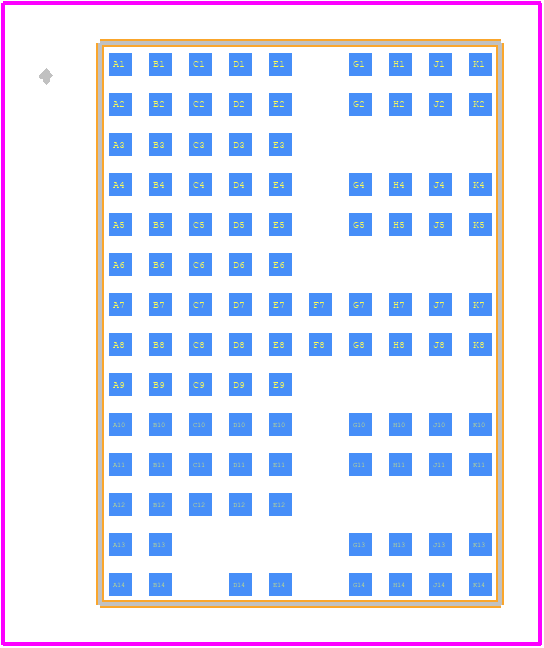

Use the download button to access the PI3741-00-LGIZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI374,
or try a keyword search, such as Switching Regulator or Controllers
