A good PCB layout for the PI3A114-AZLEX involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure proper power-up and configuration, follow the recommended power-up sequence, connect the VCC pin to a stable 1.8V to 5.5V power supply, and configure the device using the EN, SCL, and SDA pins according to the datasheet.
The PI3A114-AZLEX has a maximum junction temperature of 150°C. Ensure good airflow, use a heat sink if necessary, and avoid overheating the device. Follow the recommended thermal design guidelines to prevent thermal shutdown.
To troubleshoot issues, check the power supply, clock signal, and data transmission. Verify the device is properly configured and powered up. Use a logic analyzer or oscilloscope to debug the I2C bus. Consult the datasheet and application notes for troubleshooting guidelines.
The PI3A114-AZLEX has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap, mat, or workstation, and ensure the device is properly grounded during handling.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI3A114-AZLEX Overview

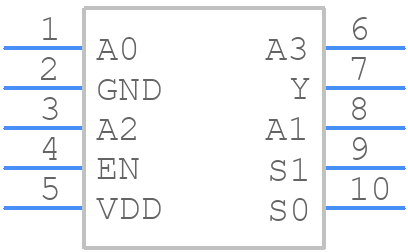

Use the download button to access the PI3A114-AZLEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI3A1,
or try a keyword search, such as Multiplexers or Switches
