A good PCB layout for the PI3CH480ZHDEX involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure proper power-on and power-off sequencing, the PI3CH480ZHDEX requires a controlled power-up and power-down sequence. The VCC pin should be powered up first, followed by the VDD pin. During power-down, the VDD pin should be powered down first, followed by the VCC pin.
The PI3CH480ZHDEX has a maximum junction temperature of 150°C. To ensure reliable operation, the device should be operated at a junction temperature below 125°C. A thermal pad on the bottom of the package helps to dissipate heat, and a heat sink or thermal interface material can be used to further reduce the junction temperature.
The PI3CH480ZHDEX has built-in ESD protection, but additional protection measures can be taken to prevent damage from electrostatic discharge. Handling the device by the body or using an anti-static wrist strap can help prevent ESD damage. A protective circuit can also be added to the PCB to further protect the device.
The PI3CH480ZHDEX requires high-quality, low-ESR capacitors to ensure stable operation. A 10uF ceramic capacitor with an ESR of less than 100mΩ is recommended for the input capacitor, and a 1uF ceramic capacitor with an ESR of less than 100mΩ is recommended for the output capacitor.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI3CH480ZHDEX Overview

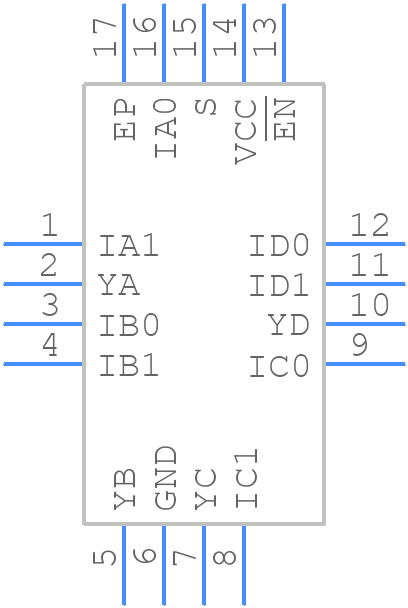

Use the download button to access the PI3CH480ZHDEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI3CH,
or try a keyword search, such as Bus Driver/Transceivers
