A good PCB layout for the PI3CLS9606HKEX involves keeping the signal traces short and away from power traces, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure reliable operation across the entire operating temperature range, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources.
Not using the recommended input capacitance values may lead to reduced noise immunity, increased power consumption, and potential instability issues. It's essential to follow the recommended capacitance values to ensure optimal performance and reliability.
Yes, the PI3CLS9606HKEX is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and meets the requirements for automotive and industrial applications. However, it's essential to follow the recommended operating conditions and design guidelines to ensure reliable operation.
To troubleshoot issues with the PI3CLS9606HKEX, start by verifying the input voltage, output voltage, and operating frequency. Check for proper PCB layout, decoupling, and thermal management. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI3CLS9606HKEX Overview

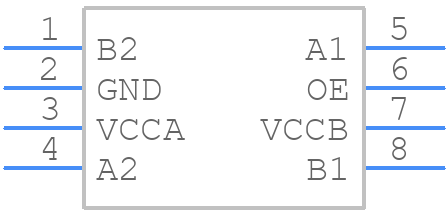

Use the download button to access the PI3CLS9606HKEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI3CL,
or try a keyword search, such as Level Translators
