A good PCB layout for the PI3L110QE involves keeping the signal traces short and direct, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper powering and decoupling of the PI3L110QE, use a high-quality decoupling capacitor (e.g., 0.1uF) placed close to the device's power pins. Also, ensure a stable power supply with minimal noise and ripple.
The PI3L110QE can operate up to 10 Gbps, but the actual operating frequency may vary depending on the specific application and PCB layout. It's recommended to consult the datasheet and application notes for more information.
The PI3L110QE has a maximum junction temperature of 125°C. To ensure proper thermal management, use a heat sink or thermal pad, and ensure good airflow around the device. Also, avoid overheating the device during soldering and handling.
The PI3L110QE has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and handling. Additionally, ensure that the device is properly powered down during storage and transportation to prevent latch-up.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI3L110QE Overview

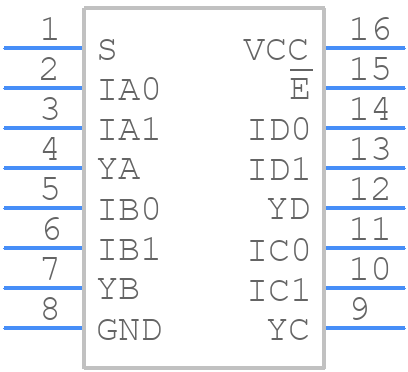

Use the download button to access the PI3L110QE schematic symbol, PCB footprint, and 3D model.
