A good PCB layout for the PI3PCIE3412AZHEX involves keeping the signal traces short and direct, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To ensure signal integrity, use controlled impedance traces, minimize stub lengths, and use a common mode filter or a differential filter to reduce electromagnetic interference (EMI). Also, ensure that the device is properly terminated and that the signal lines are properly matched.
The PI3PCIE3412AZHEX has an operating temperature range of -40°C to 85°C. However, it's recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance and reliability.
To handle hot swapping with the PI3PCIE3412AZHEX, ensure that the device is powered down before the hot swap event, and that the power supply is stable before re-applying power. Also, use a hot swap controller or a power switch with overcurrent protection to prevent damage to the device.
The recommended power sequencing for the PI3PCIE3412AZHEX is to power up the VCCIO and VCC cores simultaneously, followed by the VREF and VCCP cores. Ensure that the power supplies are stable and within the recommended voltage range before applying power to the device.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI3PCIE3412AZHEX Overview

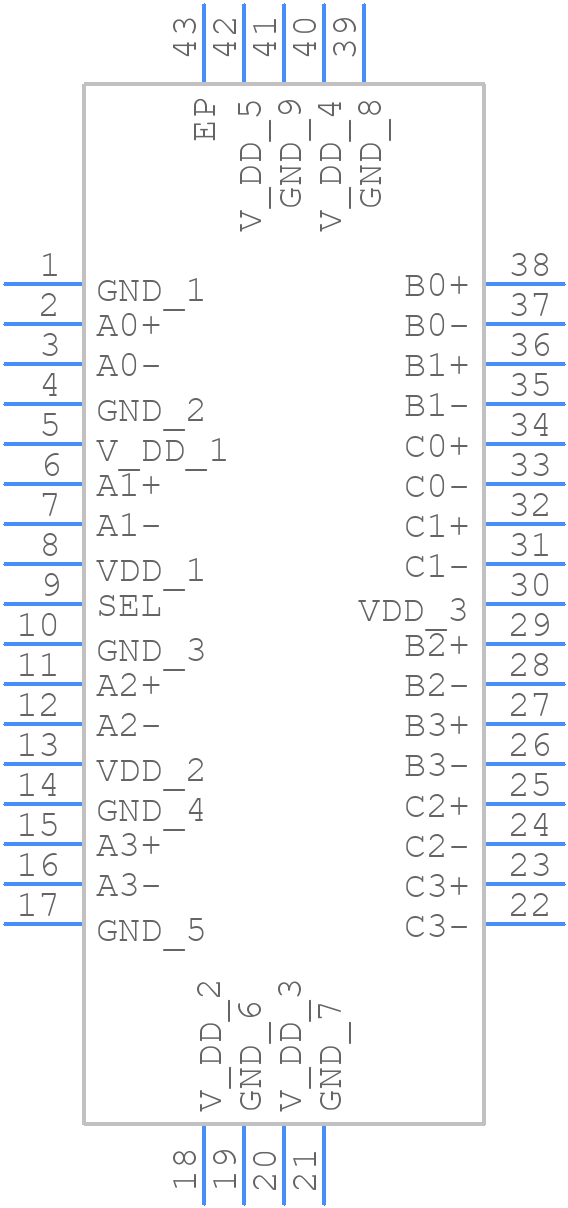

Use the download button to access the PI3PCIE3412AZHEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI3PC,
or try a keyword search, such as Multiplexers or Switches
