PI3PCIE3413AZHEX - Diodes Incorporated

Description: Multiplexer Switch ICs PCIe 3, 2-Ln (4-Ch.) Diff. 3:1 Mux/DeMux

Download PI3PCIE3413AZHEX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

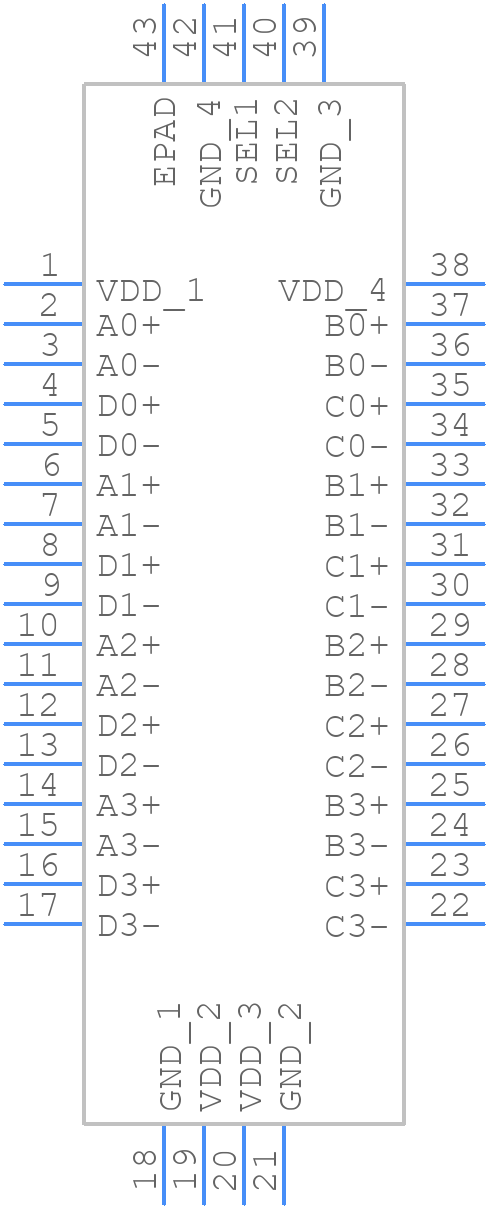

PI3PCIE3413AZHEX - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
PI3PCIE3413AZHEX - Diodes Incorporated PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - PI3L720ZHEX
click to zoom
3D Models
PI3PCIE3413AZHEX - Diodes Incorporated - 3D model - Quad Flat No-Lead - PI3L720ZHEX
click to zoom

PI3PCIE3413AZHEX Details

  • Manufacturer Part Number:

    PI3PCIE3413AZHEX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFN-42

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    7

  • Analog IC - Other Type:

    DIFFERENTIAL MULTIPLEXER

  • JESD-30 Code:

    R-XQCC-N42

  • Length:

    9 mm

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    42

  • Off-state Isolation-Nom:

    18 dB

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC42,.14X.35,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.84 mm

  • Signal Current-Max:

    0.12 A

  • Supply Current-Max (Isup):

    1 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    25 ns

  • Switch-on Time-Max:

    55 ns

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3.5 mm

PI3PCIE3413AZHEX Frequently Asked Questions (FAQs)

  • A good PCB layout for the PI3PCIE3413AZHEX involves keeping the signal traces short and direct, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure signal integrity, use controlled impedance traces, minimize stub lengths, and use series termination resistors. Also, keep the signal traces away from noise sources and use shielding if necessary.
  • The PI3PCIE3413AZHEX is rated for operation from -40°C to 85°C. However, it's recommended to derate the device's performance at higher temperatures to ensure reliability.
  • Yes, the PI3PCIE3413AZHEX is compatible with PCIe Gen3 applications. However, ensure that the device is properly configured and the signal integrity is maintained to achieve reliable operation at 8 GT/s.
  • To troubleshoot issues, start by verifying the power supply and clock signals. Then, use a logic analyzer or oscilloscope to check the signal integrity and protocol compliance. Consult the datasheet and application notes for specific troubleshooting guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PI3PCIE3413AZHEX Overview

Use the download button to access the PI3PCIE3413AZHEX schematic symbol, PCB footprint, and 3D model.
