PI3PCIE3415AZHEX - Diodes Incorporated

Description: Encoders, Decoders, Multiplexers & Demultiplexers PCIe Switch V-QFN3590-42 T&R 3.5K

Download PI3PCIE3415AZHEX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

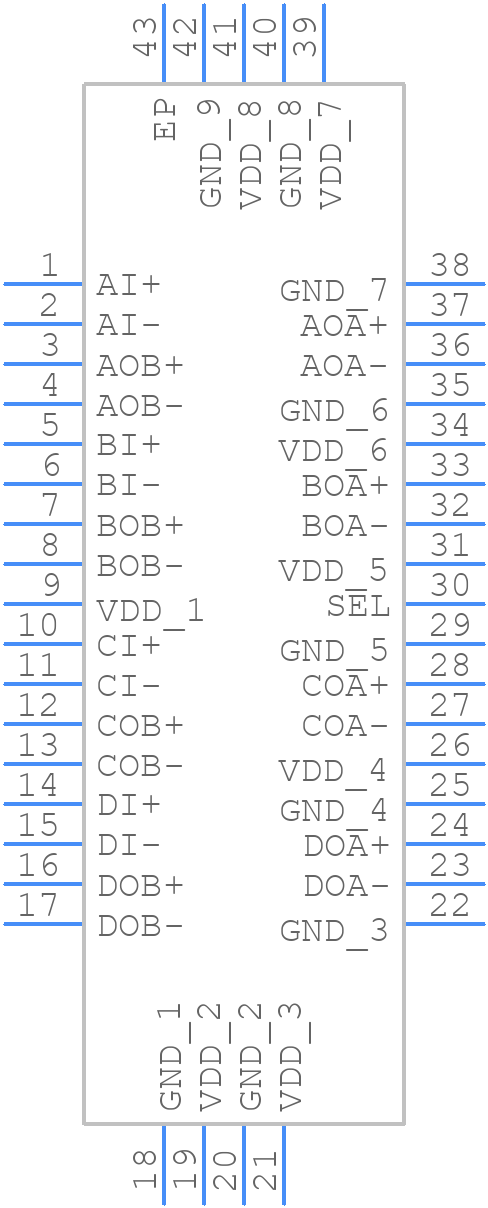

PI3PCIE3415AZHEX - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
PI3PCIE3415AZHEX - Diodes Incorporated PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 42-TQFN (ZH)
click to zoom
3D Models
PI3PCIE3415AZHEX - Diodes Incorporated - 3D model - Quad Flat No-Lead - 42-TQFN (ZH)
click to zoom

PI3PCIE3415AZHEX Details

  • Manufacturer Part Number:

    PI3PCIE3415AZHEX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFN-42

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    8

  • Analog IC - Other Type:

    DIFFERENTIAL MULTIPLEXER

  • JESD-30 Code:

    R-XQCC-N42

  • Length:

    9 mm

  • Number of Channels:

    4

  • Number of Functions:

    2

  • Number of Terminals:

    42

  • Off-state Isolation-Nom:

    19 dB

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC42,.14X.35,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.84 mm

  • Supply Current-Max (Isup):

    1 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    25 ns

  • Switch-on Time-Max:

    25 ns

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3.5 mm

PI3PCIE3415AZHEX Frequently Asked Questions (FAQs)

  • A good PCB layout for the PI3PCIE3415AZHEX involves keeping the signal traces short and direct, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure signal integrity, use controlled impedance traces, minimize stub lengths, and use a common mode filter or a differential filter to reduce electromagnetic interference (EMI). Also, ensure that the device is properly terminated and that the signal lines are properly matched.
  • The PI3PCIE3415AZHEX has an operating temperature range of -40°C to 85°C. However, it's recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance and reliability.
  • The PI3PCIE3415AZHEX has built-in hot swap capability. To handle hot swapping, ensure that the device is powered down before removing or inserting the PCIe card, and use a hot swap controller to control the power sequencing.
  • A minimum of 2x 10uF and 2x 0.1uF decoupling capacitors are recommended for the PI3PCIE3415AZHEX. Place the capacitors close to the device and use a low-ESR capacitor for the 10uF capacitor.
