A good PCB layout for the PI3USB102JXUCEX involves keeping the signal traces short and away from noise sources, using a solid ground plane, and placing the device close to the USB connector. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure signal integrity with the PI3USB102JXUCEX, use a differential pair for the USB data lines, keep the signal traces short and matched in length, and use a common mode filter or a USB 2.0 compliant filter to reduce electromagnetic interference (EMI).
The PI3USB102JXUCEX supports cable lengths up to 3 meters, but the actual maximum length may vary depending on the specific application, cable quality, and environmental conditions.
The PI3USB102JXUCEX has an integrated power management system that can be controlled through the EN pin. The device can be powered down by pulling the EN pin low, and it will enter a low-power state. Additionally, the device has an automatic power-saving feature that reduces power consumption when the USB bus is idle.
The PI3USB102JXUCEX has a maximum junction temperature of 150°C. To ensure reliable operation, the device should be operated within a temperature range of -40°C to 85°C. A thermal pad is available on the package to help dissipate heat, and a heat sink or thermal vias can be used to further reduce the junction temperature.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI3USB102JXUCEX Overview

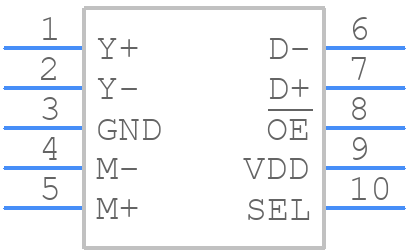

Use the download button to access the PI3USB102JXUCEX schematic symbol, PCB footprint, and 3D model.
