PI3USB14-AZHEX - Diodes Incorporated

Description: USB Switch IC 2 Channel 20-TQFN (4.5x3.5),Voltage - Supply, Single (V+):3.3v.

Download PI3USB14-AZHEX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

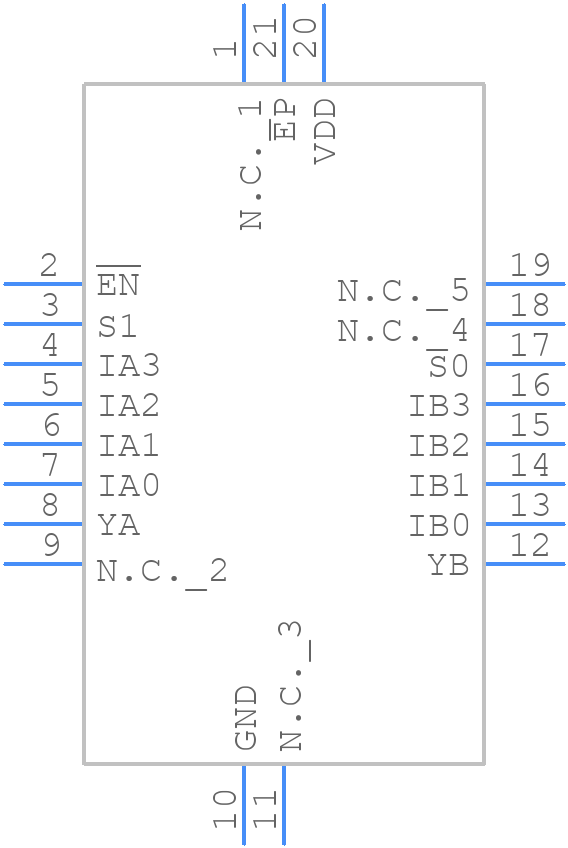

PI3USB14-AZHEX - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
PI3USB14-AZHEX - Diodes Incorporated PCB footprint - Other - Other - PI3USB14-AZHEX-1
click to zoom
3D Models
PI3USB14-AZHEX - Diodes Incorporated - 3D model - Other - PI3USB14-AZHEX-1
click to zoom

PI3USB14-AZHEX Details

  • Manufacturer Part Number:

    PI3USB14-AZHEX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • Logic IC Type:

    MULTIPLEXER AND DEMUX/DECODER

PI3USB14-AZHEX Frequently Asked Questions (FAQs)

  • The maximum current rating of the PI3USB14-AZHEX is 1.5A per channel, making it suitable for high-current USB applications.
  • Yes, the PI3USB14-AZHEX is compatible with both USB 3.0 and USB 2.0, making it a versatile solution for various USB applications.
  • The operating temperature range of the PI3USB14-AZHEX is -40°C to 85°C, making it suitable for use in a wide range of environments.
  • Yes, the PI3USB14-AZHEX has built-in overcurrent protection, which helps prevent damage to the device and downstream components in the event of a fault.
  • Yes, the PI3USB14-AZHEX is RoHS and REACH compliant, making it suitable for use in applications that require environmental compliance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PI3USB14-AZHEX Overview

Use the download button to access the PI3USB14-AZHEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI3US, or try a keyword search, such as Multiplexer/Demultiplexers
