PI3USB221AZUAEX - Diodes Incorporated

Description: 6Ω 1 SPDT(SPDT) UQFN-10(1.5x2) Analog Switches / Multiplexers ROHS

Download PI3USB221AZUAEX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

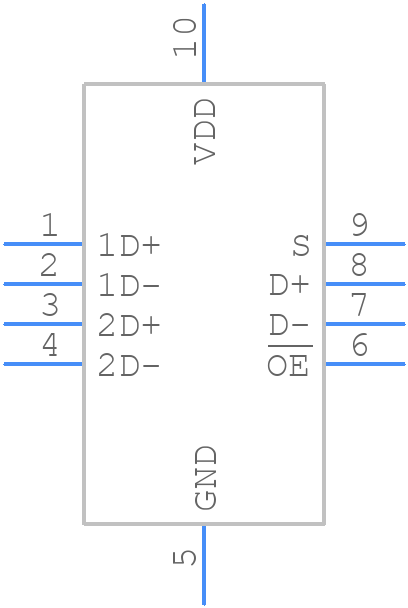

PI3USB221AZUAEX - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
PI3USB221AZUAEX - Diodes Incorporated PCB footprint - Other - Other - UQFN ( ZUA10 ) MSL 1 PPF
click to zoom
3D Models
PI3USB221AZUAEX - Diodes Incorporated - 3D model - Other - UQFN ( ZUA10 ) MSL 1 PPF
click to zoom

PI3USB221AZUAEX Details

  • Manufacturer Part Number:

    PI3USB221AZUAEX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    UQFN-10

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    7

  • Analog IC - Other Type:

    DIFFERENTIAL MULTIPLEXER

  • JESD-30 Code:

    R-XQCC-N10

  • Length:

    2 mm

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Off-state Isolation-Nom:

    41 dB

  • On-state Resistance Match-Nom:

    0.2 Ω

  • On-state Resistance-Max (Ron):

    6 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC10,.06X.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.65 mm

  • Signal Current-Max:

    0.1 A

  • Supply Current-Max (Isup):

    0.05 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    12 ns

  • Switch-on Time-Max:

    125 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    1.5 mm

PI3USB221AZUAEX Frequently Asked Questions (FAQs)

  • A good PCB layout for the PI3USB221AZUAEX involves keeping the high-speed USB traces short and away from noise sources, using a solid ground plane, and minimizing vias and layer changes. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure signal integrity with the PI3USB221AZUAEX, use controlled impedance traces, minimize trace lengths, and avoid 90-degree turns. Also, use a common mode filter or a USB 3.0 compliant filter to reduce electromagnetic interference (EMI).
  • The PI3USB221AZUAEX supports cable lengths up to 3 meters, but the actual length may vary depending on the specific application and the quality of the cable.
  • The PI3USB221AZUAEX has an integrated power management system that can be controlled through the EN pin. The device can be powered down by pulling the EN pin low, and it can be powered up by pulling the EN pin high.
  • The PI3USB221AZUAEX has a maximum junction temperature of 125°C. To ensure reliable operation, the device should be operated at a temperature below 85°C. A thermal pad is provided on the bottom of the package to help dissipate heat.
