A good PCB layout for the PI3USB221EZUAEX involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing the device close to the USB connector. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure EMI compliance, use a shielded USB connector, keep the USB traces short and away from noise sources, and add EMI filters or ferrite beads on the USB lines. Also, ensure the PCB layout is optimized for EMI reduction.
The PI3USB221EZUAEX supports cable lengths up to 3 meters, but this can vary depending on the specific application and cable quality. It's recommended to use high-quality, shielded cables to minimize signal degradation.
Yes, the PI3USB221EZUAEX is compatible with USB 3.0 applications, but it's essential to follow the USB 3.0 specification guidelines for signal integrity and PCB layout to ensure reliable operation.
The PI3USB221EZUAEX has a built-in power sequencing feature that ensures the VBUS is powered up before the data lines. However, it's still recommended to follow the USB specification guidelines for power sequencing to ensure reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI3USB221EZUAEX Overview

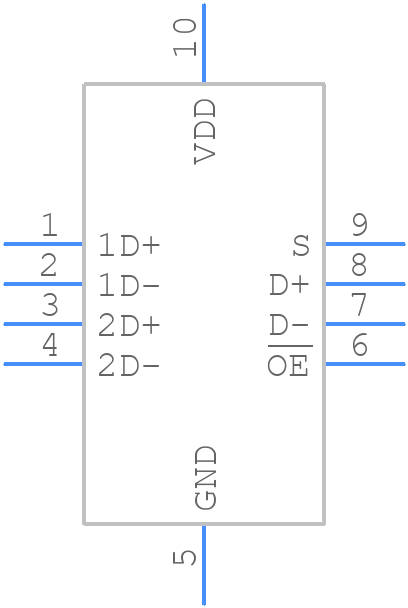

Use the download button to access the PI3USB221EZUAEX schematic symbol, PCB footprint, and 3D model.
