PI3USB221EZWEX footprint, schematic symbol and 3D model by Diodes Incorporated

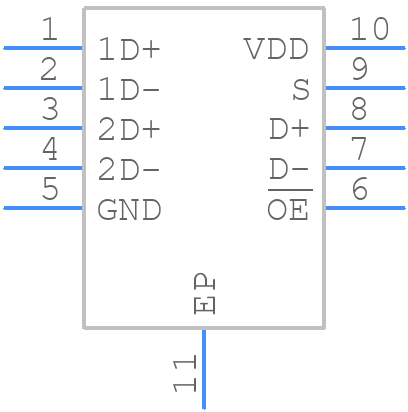

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PI3USB221EZWEX
Part Number PI3USB221EZWEX
Manufacturer Diodes Incorporated
Pin Count 11
Part Category Integrated Circuit
Package Category Small Outline No-lead
Footprint Name Small Outline No-lead - PI3USB221EZWEX-
Released Date Jan 21, 2022
Last Modified Date Jun 25, 2024 8:06 AM UTC
Pinout / Pin List Click Here (Member Only)

PI3USB221EZWEX Details

Manufacturer Part Number:
PI3USB221EZWEX
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
UDFN-10
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Factory Lead Time:
12 Weeks
Manufacturer:
Diodes Incorporated
YTEOL:
8
Analog IC - Other Type:
DIFFERENTIAL MULTIPLEXER
JESD-30 Code:
S-PDSO-N10
Length:
3 mm
Normal Position:
NO
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
10
Off-state Isolation-Nom:
41 dB
On-state Resistance Match-Nom:
0.2 Ω
On-state Resistance-Max (Ron):
6 Ω
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output:
SEPARATE OUTPUT
Package Body Material:
UNSPECIFIED
Package Code:
HVSON
Package Equivalence Code:
SOLCC10,.12,20
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Seated Height-Max:
0.65 mm
Signal Current-Max:
0.1 A
Supply Current-Max (Isup):
0.05 mA
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
2.3 V
Supply Voltage-Nom (Vsup):
2.5 V
Surface Mount:
YES
Switch-off Time-Max:
12 ns
Switch-on Time-Max:
125 ns
Switching:
BREAK-BEFORE-MAKE
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Width:
3 mm

PI3USB221EZWEX Frequently Asked Questions (FAQs)

A good PCB layout for the PI3USB221EZWEX involves keeping the signal traces short and away from noise sources, using a solid ground plane, and placing the device close to the USB connector. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure EMC with the PI3USB221EZWEX, follow proper PCB layout guidelines, use a shielded USB connector, and add EMI filtering components such as ferrite beads or common-mode chokes to the USB data lines.
The PI3USB221EZWEX supports USB 2.0 high-speed signals up to 3 meters (10 feet) in length, but the actual cable length may vary depending on the specific application and cable quality.
The PI3USB221EZWEX is a USB 2.0 device and is not compatible with USB 3.0 or USB 3.2 applications. For USB 3.0 or USB 3.2 applications, consider using a USB 3.0 or USB 3.2-specific device.
The PI3USB221EZWEX has an internal power management system that automatically switches between bus-powered and self-powered modes. However, external power management may be required depending on the specific application and power requirements.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

PI3USB221EZWEX Overview

Use the download button to access the PI3USB221EZWEX schematic symbol, PCB footprint, and 3D model.
