Diodes Incorporated provides a recommended PCB layout in the application note AN-114, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize signal integrity issues.
To ensure reliable operation over the full industrial temperature range (-40°C to 85°C), it is recommended to follow the thermal management guidelines in the datasheet, including providing adequate heat sinking and airflow, and using a thermally conductive material for the PCB.
The PI3USB3000ZUAEX supports cable lengths up to 3 meters, but the actual maximum length may vary depending on the specific application, cable quality, and signal integrity requirements. It is recommended to perform signal integrity analysis and testing to determine the maximum cable length for a specific application.
The PI3USB3000ZUAEX has a built-in power-saving feature that can be enabled by setting the EN pin low. Additionally, the device can be configured for low-power operation by reducing the clock frequency, disabling unused features, and optimizing the power management settings. Refer to the datasheet and application notes for more information.
The PI3USB3000ZUAEX has built-in ESD protection and latch-up prevention measures, including ESD diodes and latch-up protection circuits. However, it is still recommended to follow proper ESD handling and prevention procedures during handling and assembly to prevent damage to the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI3USB3000ZUAEX Overview

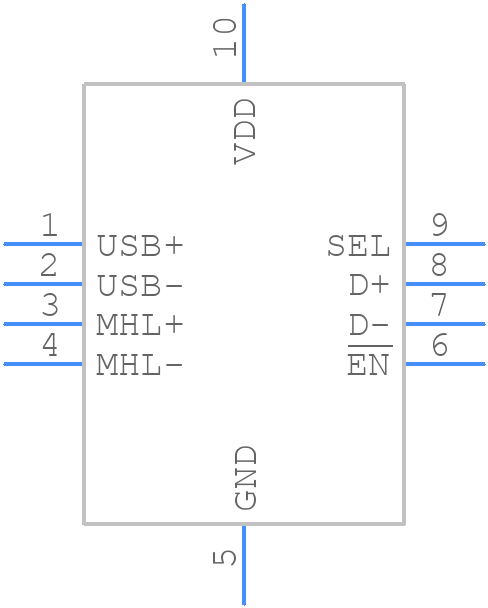

Use the download button to access the PI3USB3000ZUAEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI3US,
or try a keyword search, such as Multiplexers or Switches
