A good PCB layout for the PI3USB3102ZLE involves keeping the signal traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
The PI3USB3102ZLE requires a single 3.3V power supply. The power supply should be stable and well-regulated. The device has an internal power-on reset circuit, so no external power sequencing is required. However, it is recommended to power up the device after the power supply has stabilized.
The PI3USB3102ZLE has built-in ESD protection diodes on all pins, which can withstand up to 2kV of ESD according to the IEC61000-4-2 standard. To prevent latch-up, it is recommended to use a series resistor and a TVS diode on the USB data lines, and to ensure that the device is powered up and down slowly to prevent voltage spikes.
A robust and reliable reset circuit for the PI3USB3102ZLE can be implemented using a voltage supervisor IC, such as the TLV7031, which can detect undervoltage and brownout conditions and generate a reset signal to the device. The reset signal should be active-low and have a duration of at least 10ms.
The PI3USB3102ZLE has a maximum junction temperature of 150°C. To ensure reliable operation, the device should be mounted on a PCB with a good thermal conductivity, and the ambient temperature should be kept below 85°C. A thermal pad on the bottom of the package can be connected to a ground plane to improve heat dissipation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI3USB3102ZLE Overview

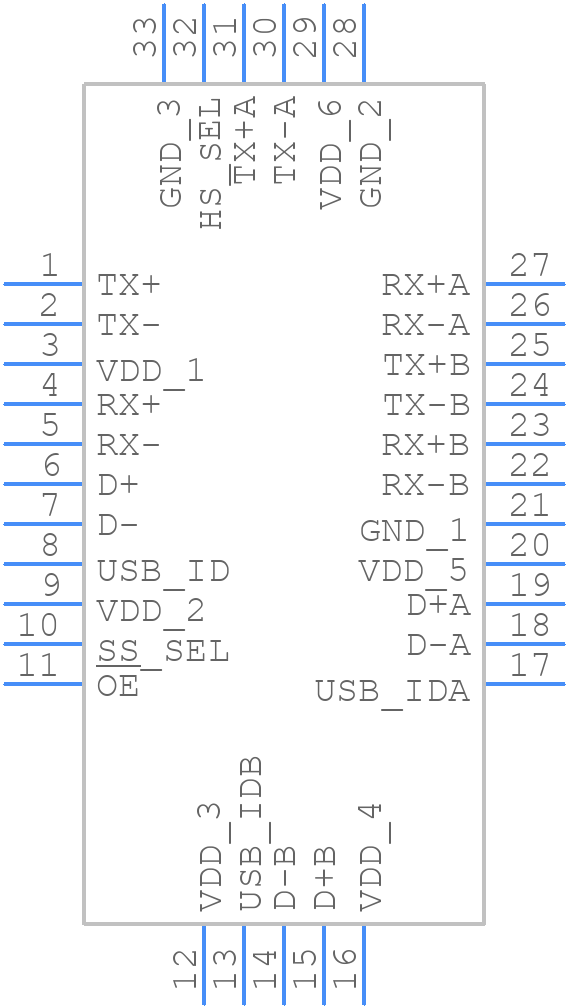

Use the download button to access the PI3USB3102ZLE schematic symbol, PCB footprint, and 3D model.
