PI3USB32212ZLEX - Diodes Incorporated

Description: USB Switch ICs USB3 Switch

Download PI3USB32212ZLEX Model

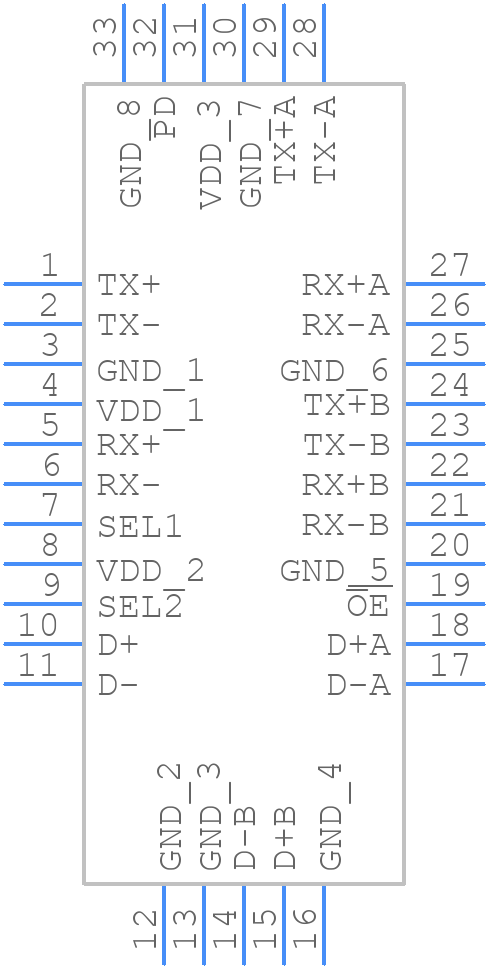

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PI3USB32212ZLEX - Diodes Incorporated PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - PI3DPX1203BZLEX
click to zoom
3D Models
PI3USB32212ZLEX - Diodes Incorporated  - 3D model - Quad Flat No-Lead - PI3DPX1203BZLEX
click to zoom

PI3USB32212ZLEX Details

  • Manufacturer Part Number:

    PI3USB32212ZLEX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFN-32

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-XQCC-N32

  • Length:

    6 mm

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.12X.24,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    2.97 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

PI3USB32212ZLEX Frequently Asked Questions (FAQs)

  • The maximum current rating for each USB port is 2.5A, but it's recommended to limit it to 1.5A for reliable operation.
  • The device is configured for USB 2.0 or USB 3.0 mode through the MODE pin. A logic high on the MODE pin selects USB 3.0 mode, while a logic low selects USB 2.0 mode.
  • The EN pin is an active-high enable input that allows the device to be enabled or disabled. When EN is high, the device is enabled, and when EN is low, the device is disabled and consumes minimal power.
  • The device requires a specific power sequencing to ensure proper operation. The recommended power-up sequence is VCC, then VBUS, and the recommended power-down sequence is VBUS, then VCC.
  • The device has a maximum junction temperature of 125°C. To ensure reliable operation, it's recommended to keep the device temperature below 85°C. This can be achieved by providing adequate heat sinking and airflow.
