A good PCB layout for the PI3USB4000DZUAEX involves keeping the signal traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure signal integrity with the PI3USB4000DZUAEX, use controlled impedance traces, minimize trace lengths, and use signal shielding. Also, ensure that the device is properly terminated and that the signal frequencies are within the device's specified range.
The PI3USB4000DZUAEX has a maximum junction temperature of 125°C. Ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the airflow around the device. Also, ensure that the device is properly soldered to the PCB to ensure good thermal conductivity.
To troubleshoot issues with the PI3USB4000DZUAEX, first check the power supply voltage and ensure it is within the specified range. Then, check the signal integrity and ensure that the signal frequencies are within the device's specified range. Use an oscilloscope to check the signal waveforms and ensure that they are within the specified tolerances.
The PI3USB4000DZUAEX has built-in ESD protection, but it is still important to follow proper ESD handling procedures when handling the device. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-safe environment.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI3USB4000DZUAEX Overview

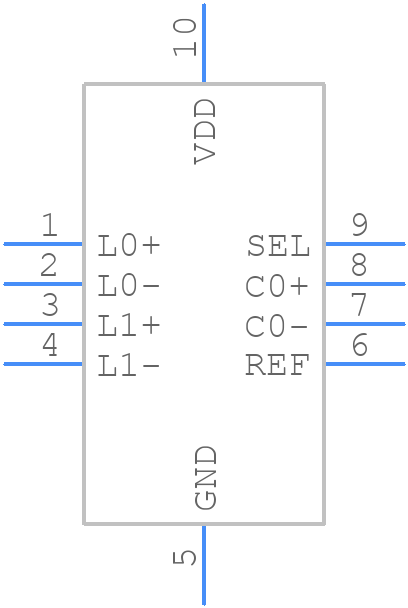

Use the download button to access the PI3USB4000DZUAEX schematic symbol, PCB footprint, and 3D model.
