PI3USB4002AZUAEX footprint, schematic symbol and 3D model by Diodes Incorporated

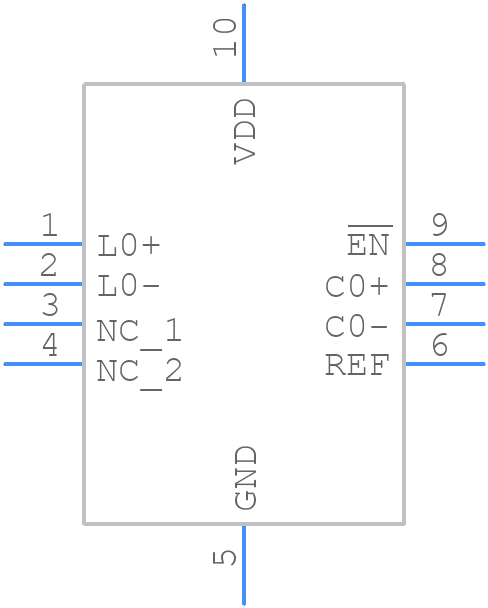

Symbol

click to zoom

PCB Footprints

PI3USB4002AZUAEX - Diodes Incorporated PCB footprint - Other - Other - PI3USB4002AZUAEX

click to zoom

3D Models

PI3USB4002AZUAEX - Diodes Incorporated - 3D model - Other - PI3USB4002AZUAEX

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PI3USB4002AZUAEX
Part Number PI3USB4002AZUAEX
Manufacturer Diodes Incorporated
Pin Count 10
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - PI3USB4002AZUAEX
Released Date Feb 18, 2023
Last Modified Date Apr 29, 2024 4:18 AM UTC
Pinout / Pin List Click Here (Member Only)

PI3USB4002AZUAEX Details

Manufacturer Part Number:
PI3USB4002AZUAEX
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
UQFN-10
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Factory Lead Time:
12 Weeks
Manufacturer:
Diodes Incorporated
YTEOL:
7
Analog IC - Other Type:
SPST
JESD-30 Code:
R-XQCC-N10
Length:
2 mm
Normal Position:
NO
Number of Channels:
2
Number of Functions:
1
Number of Terminals:
10
Off-state Isolation-Nom:
30 dB
On-state Resistance Match-Nom:
1 Ω
On-state Resistance-Max (Ron):
9 Ω
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output:
SEPARATE OUTPUT
Package Body Material:
UNSPECIFIED
Package Code:
HVQCCN
Package Equivalence Code:
LCC10,.06X.08,20
Package Shape:
RECTANGULAR
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Seated Height-Max:
0.65 mm
Signal Current-Max:
0.05 A
Supply Current-Max (Isup):
0.045 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
2.7 V
Supply Voltage-Nom (Vsup):
3.3 V
Surface Mount:
YES
Switching:
BREAK-BEFORE-MAKE
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Width:
1.5 mm

PI3USB4002AZUAEX Frequently Asked Questions (FAQs)

Diodes Incorporated provides a recommended PCB layout in the application note AN-114, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
The PI3USB4002AZUAEX can be configured for different USB modes using the Mode Select pins (MODE_SEL[1:0]). Refer to the datasheet for the specific pin configurations and settings for each USB mode.
The PI3USB4002AZUAEX supports cable lengths up to 3 meters for USB 3.2 Gen 1 and 2 meters for USB 3.2 Gen 2, assuming a good quality cable with minimal signal attenuation.
The PI3USB4002AZUAEX has an integrated overcurrent protection feature that can be enabled by connecting the OCP pin to a suitable resistor and capacitor network. Refer to the datasheet for the recommended OCP circuit configuration.
The power consumption of the PI3USB4002AZUAEX varies depending on the operating mode. Refer to the datasheet for the typical power consumption values in different modes, such as idle, active, and sleep modes.
