PI4IOE5V6416Q2LEX - Diodes Incorporated

Description: Interface - I/O Expanders Interface IO Expander TSSOP-24 T&R 3K

Download PI4IOE5V6416Q2LEX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

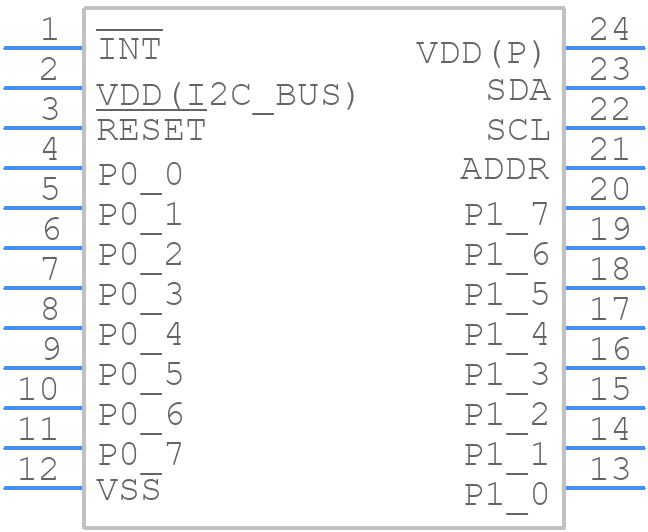

PI4IOE5V6416Q2LEX - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
PI4IOE5V6416Q2LEX - Diodes Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP (L24) MSL1 Sn
click to zoom
3D Models
PI4IOE5V6416Q2LEX - Diodes Incorporated - 3D model - Small Outline Packages - TSSOP (L24) MSL1 Sn
click to zoom

PI4IOE5V6416Q2LEX Details

  • Manufacturer Part Number:

    PI4IOE5V6416Q2LEX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

PI4IOE5V6416Q2LEX Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for PI4IOE5V6416Q2LEX is 3.135V to 3.465V, with a typical voltage of 3.3V.
  • To handle thermal management, ensure good airflow around the device, use a heat sink if necessary, and follow the recommended PCB layout and thermal design guidelines provided by Diodes Incorporated.
  • The maximum current rating for each I/O pin of PI4IOE5V6416Q2LEX is 25mA, with a total device current limit of 100mA.
  • The output drive strength of PI4IOE5V6416Q2LEX can be configured through the I2C interface by writing to the appropriate register. Refer to the datasheet for specific register addresses and values.
  • No, PI4IOE5V6416Q2LEX is not compatible with 1.8V or 2.5V logic levels. It is designed to operate with 3.3V logic levels.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PI4IOE5V6416Q2LEX Overview

Use the download button to access the PI4IOE5V6416Q2LEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI4IO, or try a keyword search, such as Parallel IO Ports
