PI4IOE5V9535ZDEX - Diodes Incorporated

Description: Interface - I/O Expanders 16-bit I2C and SMBus Port

Download PI4IOE5V9535ZDEX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

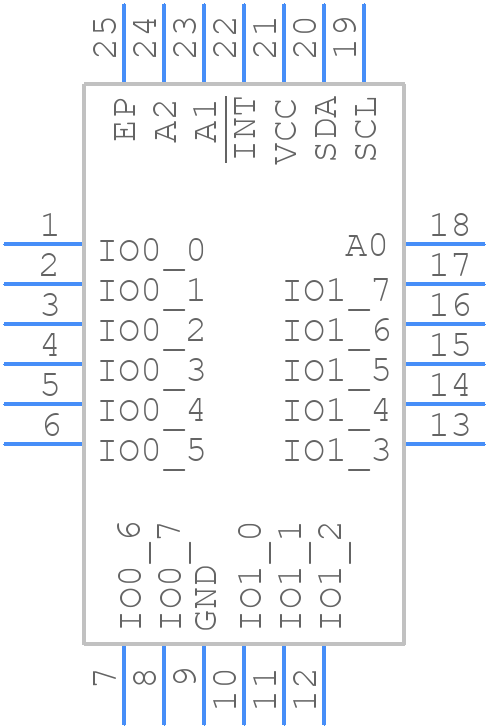

Symbol
PI4IOE5V9535ZDEX - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
PI4IOE5V9535ZDEX - Diodes Incorporated PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - PI4IOE5V9535ZDEX 25pin
click to zoom
3D Models
PI4IOE5V9535ZDEX - Diodes Incorporated - 3D model - Quad Flat No-Lead - PI4IOE5V9535ZDEX 25pin
click to zoom

PI4IOE5V9535ZDEX Details

  • Manufacturer Part Number:

    PI4IOE5V9535ZDEX

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFN-24

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    S-XQCC-N24

  • Length:

    4 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.3 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

PI4IOE5V9535ZDEX Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the PI4IOE5V9535ZDEX is 3.3V to 5V.
  • To ensure signal integrity, use a low-impedance PCB design, minimize trace lengths, and use termination resistors as needed. Additionally, follow the recommended layout guidelines in the datasheet.
  • Yes, the PI4IOE5V9535ZDEX is designed to support hot-swapping. However, ensure that the power sequencing and voltage ramp-up times are within the recommended specifications to prevent damage to the device.
  • Follow the recommended power-up and power-down sequencing guidelines in the datasheet to prevent damage to the device. Typically, power up the VCC supply before the OE/DIR input, and power down the OE/DIR input before the VCC supply.
  • The maximum current rating for the PI4IOE5V9535ZDEX is 25mA per channel. Ensure that the total current drawn from the device does not exceed the recommended maximum current rating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PI4IOE5V9535ZDEX Overview

Use the download button to access the PI4IOE5V9535ZDEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI4IO, or try a keyword search, such as Other Interface ICs
