PI4IOE5V9554ZHEX - Diodes Incorporated

Description: Interface - I/O Expanders Interface IO Expander W-QFN3030-16 T&R 3.5K

Download PI4IOE5V9554ZHEX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

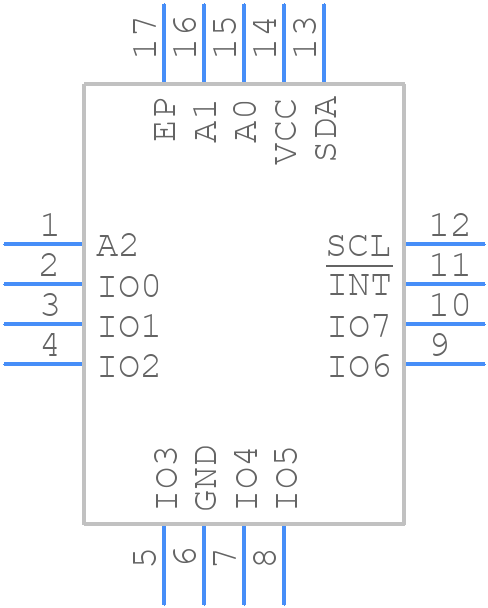

PI4IOE5V9554ZHEX - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
PI4IOE5V9554ZHEX - Diodes Incorporated PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - TQFN 3x3-16(ZH)
click to zoom
3D Models
PI4IOE5V9554ZHEX - Diodes Incorporated - 3D model - Quad Flat No-Lead - TQFN 3x3-16(ZH)
click to zoom

PI4IOE5V9554ZHEX Details

  • Manufacturer Part Number:

    PI4IOE5V9554ZHEX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFN-16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    S-XQCC-N16

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.3 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

PI4IOE5V9554ZHEX Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for PI4IOE5V9554ZHEX is 3.135V to 3.465V, with a typical voltage of 3.3V.
  • To ensure signal integrity, it is recommended to use a low-impedance PCB design, minimize trace lengths, and use termination resistors as needed. Additionally, follow the recommended layout guidelines and use a clock signal with a rise time of less than 1ns.
  • The maximum clock frequency supported by PI4IOE5V9554ZHEX is 250MHz.
  • It is recommended to power up the VCCIO pin before the VCC core pin, and to ensure that the VCCIO pin is powered up within 100ms of the VCC core pin. Additionally, ensure that the input signals are not driven until the power-up sequence is complete.
  • The thermal management strategy for PI4IOE5V9554ZHEX involves using a heat sink or thermal pad to dissipate heat, and ensuring good airflow around the device. The maximum junction temperature is 125°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PI4IOE5V9554ZHEX Overview

Use the download button to access the PI4IOE5V9554ZHEX schematic symbol, PCB footprint, and 3D model.
