PI4IOE5V96224ZLEX - Diodes Incorporated

Description: Interface - I/O Expanders 24-bit I2C-bus I/O Expander

Download PI4IOE5V96224ZLEX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

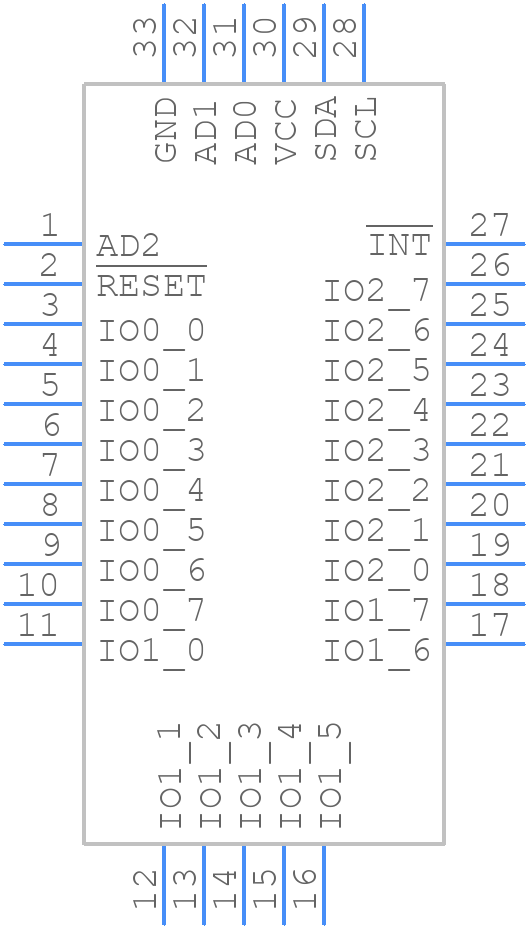

Symbol
PI4IOE5V96224ZLEX - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
PI4IOE5V96224ZLEX - Diodes Incorporated PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - PI4IOE5V96224ZLEX-
click to zoom
3D Models
PI4IOE5V96224ZLEX - Diodes Incorporated - 3D model - Quad Flat No-Lead - PI4IOE5V96224ZLEX-
click to zoom

PI4IOE5V96224ZLEX Details

  • Manufacturer Part Number:

    PI4IOE5V96224ZLEX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFN-32

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-XQCC-N32

  • Length:

    6 mm

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.12X.24,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.3 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

PI4IOE5V96224ZLEX Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the PI4IOE5V96224ZLEX is 1.71V to 5.5V.
  • To ensure signal integrity, use a low-impedance PCB design, minimize trace lengths, and use termination resistors as needed. Additionally, follow the recommended layout guidelines in the datasheet.
  • Yes, the PI4IOE5V96224ZLEX is rated for operation up to 125°C. However, ensure that the device is properly cooled and follow the recommended thermal design guidelines to prevent overheating.
  • The PI4IOE5V96224ZLEX has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that all equipment is properly grounded.
  • The PI4IOE5V96224ZLEX supports data transfer rates up to 100 Mbps.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PI4IOE5V96224ZLEX Overview

Use the download button to access the PI4IOE5V96224ZLEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI4IO, or try a keyword search, such as Other Interface ICs
