A good PCB layout for the PI4MSD5V9543AWEX involves keeping the input and output tracks as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper power-on and power-off sequencing, it's recommended to power on the VCC pin first, followed by the VIN pin. When powering off, reverse the sequence. Additionally, ensure that the input voltage ramps up and down slowly to prevent damage to the device.
The PI4MSD5V9543AWEX is rated for operation from -40°C to 125°C. However, it's recommended to operate the device within a temperature range of 0°C to 85°C for optimal performance and reliability.
The PI4MSD5V9543AWEX has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures when handling the device. This includes using an ESD wrist strap, ESD mat, and ESD-safe packaging.
The recommended input capacitance for the PI4MSD5V9543AWEX is 10uF to 22uF, with an X7R or X5R dielectric. This helps to filter out noise and ensure stable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI4MSD5V9543AWEX Overview

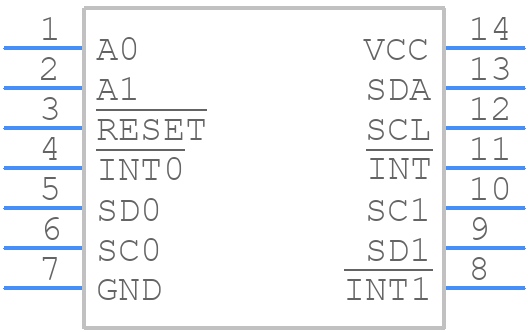

Use the download button to access the PI4MSD5V9543AWEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI4MS,
or try a keyword search, such as Other Interface ICs
