A good PCB layout for the PI4MSD5V9546AZYEX would involve keeping the input and output tracks as short as possible, using a solid ground plane, and minimizing the distance between the device and the decoupling capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper decoupling, place a 10uF ceramic capacitor between the VCC pin and the GND pin, as close to the device as possible. Additionally, add a 1uF ceramic capacitor between the VCC pin and the GND pin for additional filtering. Make sure to use capacitors with a voltage rating that meets or exceeds the maximum voltage of the device.
The PI4MSD5V9546AZYEX has an operating temperature range of -40°C to 125°C. However, it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
Yes, the PI4MSD5V9546AZYEX is suitable for high-reliability applications. It's manufactured using a robust process and has undergone rigorous testing to ensure its reliability. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specified parameters.
To troubleshoot issues with the PI4MSD5V9546AZYEX, start by verifying the power supply voltage and ensuring it's within the recommended range. Check the input and output signals for any anomalies, and verify that the device is properly decoupled. If the issue persists, consult the datasheet and application notes for guidance, or contact Diodes Incorporated's technical support team for assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI4MSD5V9546AZYEX Overview

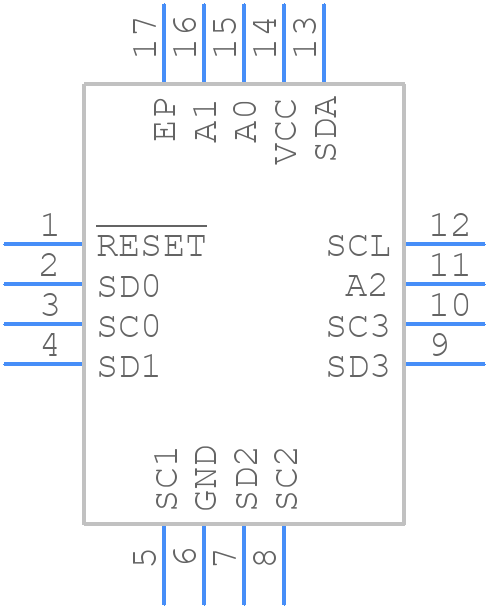

Use the download button to access the PI4MSD5V9546AZYEX schematic symbol, PCB footprint, and 3D model.
