A good PCB layout for the PI4ULS3V204GAEX involves keeping the input and output tracks as short as possible, using a solid ground plane, and minimizing the distance between the device and the decoupling capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper powering and decoupling of the PI4ULS3V204GAEX, use a high-quality power supply with low ripple and noise, and decouple the device with a 10uF ceramic capacitor and a 100nF ceramic capacitor in parallel, placed as close as possible to the device.
The PI4ULS3V204GAEX has an operating temperature range of -40°C to 125°C, but it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
To prevent ESD damage to the PI4ULS3V204GAEX, handle the device in an ESD-protected environment, wear an ESD wrist strap or use an ESD mat, and use ESD-protected packaging and storage materials.
The recommended soldering profile for the PI4ULS3V204GAEX involves a peak temperature of 260°C, a dwell time above 217°C of 30-45 seconds, and a total process time of 60-90 seconds.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI4ULS3V204GAEX Overview

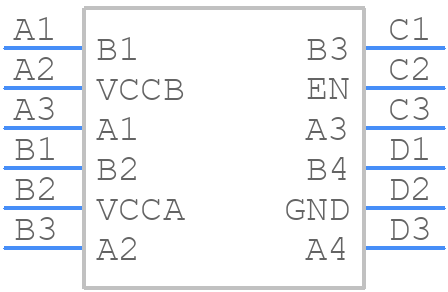

Use the download button to access the PI4ULS3V204GAEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI4UL,
or try a keyword search, such as Other Interface ICs
