A good PCB layout for PI4ULS5V108LEX involves keeping the signal paths short, using a solid ground plane, and placing decoupling capacitors close to the device. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure signal integrity, use controlled impedance traces, add series termination resistors, and consider using differential signaling. Additionally, keep the signal paths short and avoid vias and stubs to minimize signal reflections.
The maximum operating temperature range for PI4ULS5V108LEX is -40°C to 125°C. However, it's recommended to operate the device within the industrial temperature range of -40°C to 85°C for optimal performance and reliability.
Yes, PI4ULS5V108LEX is compatible with 3.3V systems. The device can operate with a supply voltage range of 1.65V to 5.5V, making it suitable for 3.3V systems. However, ensure that the input signals are within the recommended voltage range to avoid damage to the device.
PI4ULS5V108LEX has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-safe environment.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI4ULS5V108LEX Overview

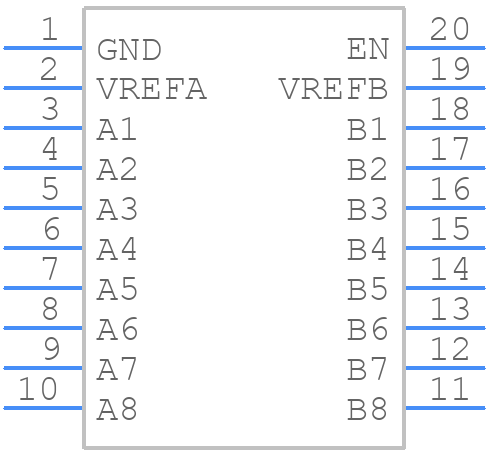

Use the download button to access the PI4ULS5V108LEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI4UL,
or try a keyword search, such as Bus Driver/Transceivers
