Diodes Incorporated provides a recommended PCB layout in their application note AN-114, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The PI5A100WEX has a thermal pad on the bottom of the package that must be connected to a thermal plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve thermal conductivity. Additionally, the PCB should be designed to allow for good airflow around the device.
The PI5A100WEX has an operating temperature range of -40°C to +125°C, but the maximum junction temperature (TJ) should not exceed 150°C. The device should be derated for temperatures above 100°C to ensure reliable operation.
The PI5A100WEX can deliver up to 10A of output current. To handle this high current, the PCB should be designed with wide traces and a solid ground plane to minimize voltage drops and thermal issues. Additionally, the output capacitors should be selected to handle the high ripple current.
The PI5A100WEX is a high-frequency switching regulator, which can generate electromagnetic interference (EMI). To minimize EMI, the PCB should be designed with a solid ground plane, and the device should be placed away from sensitive analog circuits. Additionally, EMI filters and shielding can be used to reduce radiation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI5A100WEX Overview

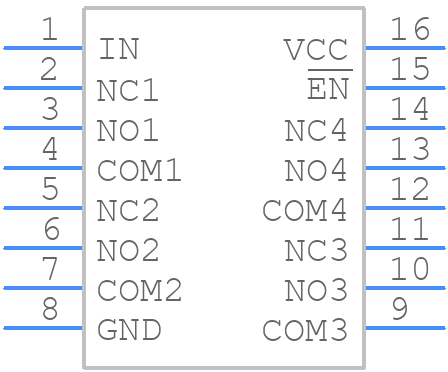

Use the download button to access the PI5A100WEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI5A1,
or try a keyword search, such as Multiplexers or Switches
