A good PCB layout for the PI5C3253LE involves keeping the signal traces short and direct, using a solid ground plane, and placing the device close to the source and load. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and crosstalk.
The PI5C3253LE requires a single 3.3V power supply. It's recommended to use a low-dropout linear regulator (LDO) to power the device. The power sequencing requirement is to power up the VCC pin before the input signals. It's also recommended to add decoupling capacitors close to the VCC pin to filter out noise and reduce power supply ripple.
The PI5C3253LE is designed to operate up to 250 MHz. However, the actual operating frequency may be limited by the system's signal integrity, PCB layout, and other factors. It's recommended to perform signal integrity simulations and testing to determine the maximum frequency of operation for a specific application.
The PI5C3253LE has a thermal pad on the bottom of the package, which should be connected to a solid ground plane on the PCB to dissipate heat. It's recommended to use thermal vias to connect the thermal pad to the ground plane. Additionally, the device should be placed in a well-ventilated area, and the PCB should be designed to allow for good airflow to prevent overheating.
The PI5C3253LE has built-in ESD protection diodes on the input pins. However, it's still recommended to add external ESD protection devices, such as TVS diodes, to protect the device from electrostatic discharge. To prevent latch-up, it's recommended to use a latch-up prevention circuit, such as a resistor and capacitor in series, on the input pins.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI5C3253LE Overview

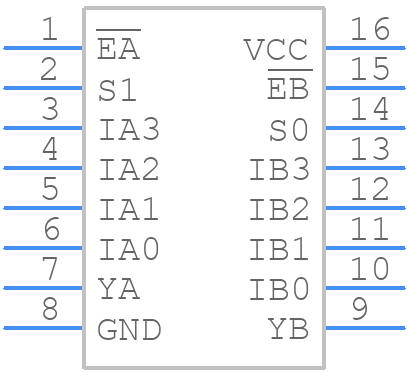

Use the download button to access the PI5C3253LE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI5C3,
or try a keyword search, such as Bus Driver/Transceivers
