PI5C3257QEX - Diodes Incorporated

Description: Multiplexer Switch ICs Quad 2:1 Multiplexer Demultiplexer

Download PI5C3257QEX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

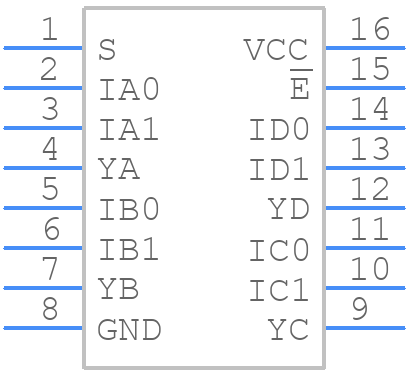

Symbol
PI5C3257QEX - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
PI5C3257QEX - Diodes Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - 16-QSOP (Q)
click to zoom
3D Models
PI5C3257QEX - Diodes Incorporated - 3D model - Small Outline Packages - 16-QSOP (Q)
click to zoom

PI5C3257QEX Details

  • Manufacturer Part Number:

    PI5C3257QEX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QSOP-16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    6

  • Additional Feature:

    TTL COMPATIBLE MUX/DMUX SWITCH; MAX RON = 15 OHM @ VIN 2.4V & ION = 15MA

  • Family:

    CBT/FST/QS/5C/B

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS EXCHANGER

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    1

  • Number of Functions:

    4

  • Number of Ports:

    3

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Propagation Delay (tpd):

    0.25 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

PI5C3257QEX Frequently Asked Questions (FAQs)

  • A good PCB layout for the PI5C3257QEX involves keeping the signal traces short and direct, using a solid ground plane, and placing decoupling capacitors close to the device. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The PI5C3257QEX requires a single 3.3V power supply. It's recommended to use a low-dropout linear regulator or a switching regulator with a low output voltage ripple to power the device. The power sequencing requirement is to power up the VCC pin before the input signals.
  • The PI5C3257QEX can operate up to 250 MHz, but the actual frequency of operation depends on the specific application and the signal integrity of the PCB.
  • The PI5C3257QEX has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB to dissipate heat. It's also recommended to use thermal vias to connect the thermal pad to the thermal plane.
  • The PI5C3257QEX has built-in ESD protection diodes on the input pins, but it's still recommended to use external ESD protection devices, such as TVS diodes, to protect the device from electrostatic discharge. Latch-up prevention can be achieved by using a power-on reset circuit and ensuring that the input signals are not applied before the power supply is stable.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PI5C3257QEX Overview

Use the download button to access the PI5C3257QEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI5C3, or try a keyword search, such as Bus Driver/Transceivers
