The recommended PCB layout for optimal performance of the PI5C3257ZHDEX involves keeping the signal traces as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
To ensure signal integrity when using the PI5C3257ZHDEX in high-speed applications, it's essential to follow proper PCB design and layout guidelines, such as using controlled impedance traces, minimizing signal reflections, and using termination resistors. Additionally, it's recommended to use a signal integrity analysis tool to simulate and optimize the signal transmission.
The maximum operating temperature range for the PI5C3257ZHDEX is -40°C to 85°C. However, it's recommended to operate the device within the recommended operating temperature range of 0°C to 70°C for optimal performance and reliability.
To handle ESD protection when using the PI5C3257ZHDEX, it's recommended to follow proper ESD handling procedures, such as using an ESD wrist strap or mat, and storing the device in an ESD-protected package. Additionally, it's recommended to use ESD protection devices, such as TVS diodes, on the input and output pins of the device.
The recommended power-up sequence for the PI5C3257ZHDEX is to power up the VCC pin first, followed by the VDD pin. This ensures that the internal voltage regulators are properly initialized and that the device operates correctly.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI5C3257ZHDEX Overview

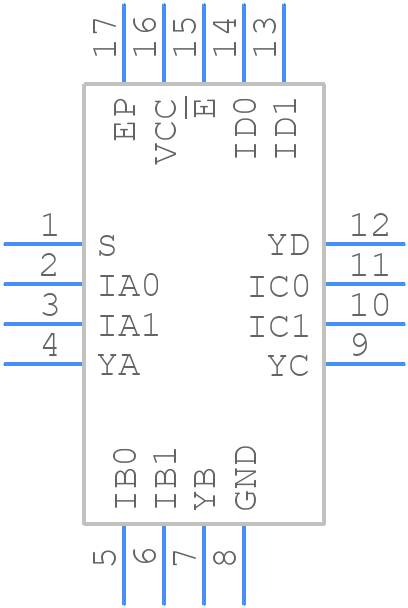

Use the download button to access the PI5C3257ZHDEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI5C3,
or try a keyword search, such as Bus Driver/Transceivers
