A good PCB layout for the PI5USB30213AXEAEX involves keeping the signal traces short and away from noise sources, using a solid ground plane, and placing the device close to the USB connector. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure signal integrity with the PI5USB30213AXEAEX, use a differential pair for the USB data lines, keep the signal traces short and matched in length, and use a common mode filter or a USB 2.0 compliant filter to reduce electromagnetic interference (EMI).
The PI5USB30213AXEAEX supports USB 2.0 high-speed signals up to 3 meters (10 feet) in length, but the actual cable length may vary depending on the specific application and the quality of the cable.
The PI5USB30213AXEAEX has an internal power management system that allows it to automatically switch between bus-powered and self-powered modes. However, it is recommended to add external power management circuitry to ensure reliable operation and to meet USB power specifications.
The PI5USB30213AXEAEX has a maximum junction temperature of 150°C. To ensure reliable operation, it is recommended to keep the device temperature below 125°C. A thermal pad on the bottom of the package helps to dissipate heat, and a heat sink or thermal management system may be required in high-temperature applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI5USB30213AXEAEX Overview

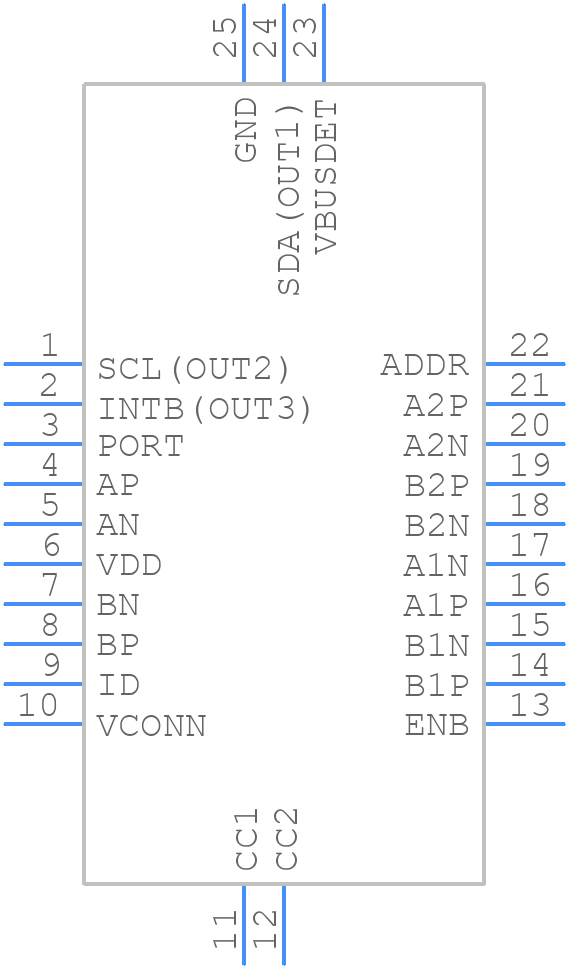

Use the download button to access the PI5USB30213AXEAEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI5US,
or try a keyword search, such as Multiplexers or Switches
