PI5USB30213XEAEX - Diodes Incorporated

Description: USB 3.0/3.1 Gen 1 SuperSpeed Mux/Demux Switch with I2C Control for Type-C Connector

Download PI5USB30213XEAEX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

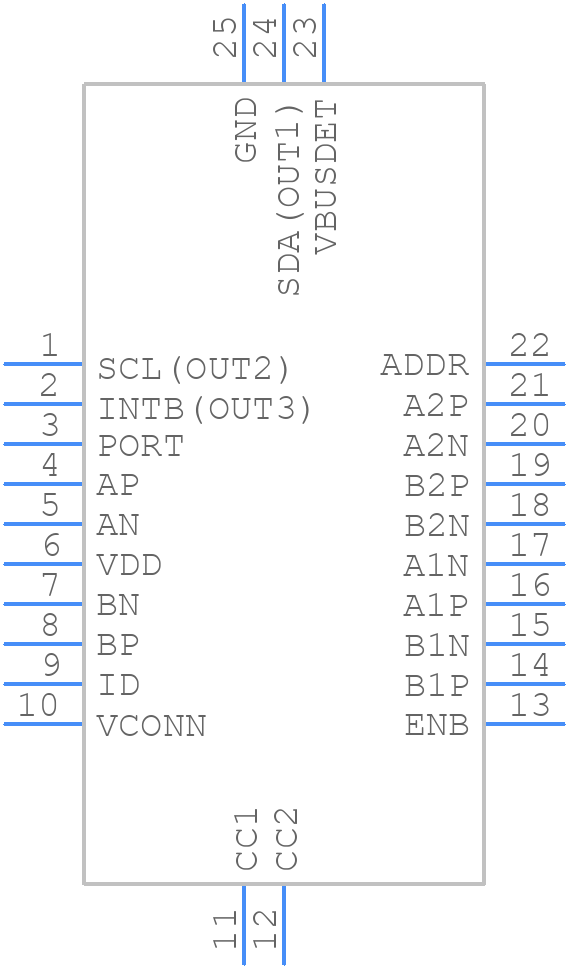

PI5USB30213XEAEX - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
PI5USB30213XEAEX - Diodes Incorporated PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - X1QFN 2 X 4 -24 Contact
click to zoom
3D Models
PI5USB30213XEAEX - Diodes Incorporated - 3D model - Quad Flat No-Lead - X1QFN 2 X 4 -24 Contact
click to zoom

PI5USB30213XEAEX Details

  • Manufacturer Part Number:

    PI5USB30213XEAEX

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ,

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    2018-03-27

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    0

  • Analog IC - Other Type:

    DIFFERENTIAL MULTIPLEXER

PI5USB30213XEAEX Frequently Asked Questions (FAQs)

  • A good PCB layout for the PI5USB30213XEAEX involves keeping the signal traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure signal integrity, use controlled impedance traces, minimize trace length and stubs, and use a common mode filter or common mode choke to reduce electromagnetic interference (EMI).
  • The PI5USB30213XEAEX supports cable lengths up to 3 meters, but this can vary depending on the specific application and cable quality. It's recommended to use high-quality, shielded cables to minimize signal degradation.
  • Yes, the PI5USB30213XEAEX is compatible with USB 3.0 applications, but it's essential to follow the USB 3.0 specification and ensure that the device is properly configured for USB 3.0 operation.
  • The PI5USB30213XEAEX requires a specific power sequencing to ensure proper operation. The VCC pin should be powered up before the VDD pin, and the VDD pin should be powered down before the VCC pin.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PI5USB30213XEAEX Overview

Use the download button to access the PI5USB30213XEAEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI5US, or try a keyword search, such as Multiplexers or Switches
