A good PCB layout for the PI6C39X0202XECIEX should minimize signal trace lengths, use a solid ground plane, and keep power and ground traces separate. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper powering and decoupling, use a high-quality power supply with low ripple and noise, and add decoupling capacitors (e.g., 10uF and 100nF) close to the device. Also, ensure that the power and ground pins are connected to a solid power and ground plane.
The PI6C39X0202XECIEX has an operating temperature range of -40°C to +85°C. However, it's recommended to operate the device within a temperature range of 0°C to +70°C for optimal performance and reliability.
To troubleshoot issues with the PI6C39X0202XECIEX, start by checking the power supply and decoupling, then verify the clock signal and data transmission. Use an oscilloscope to check signal integrity and look for signs of signal degradation or noise. Consult the datasheet and application notes for specific troubleshooting guidelines.
The PI6C39X0202XECIEX is a commercial-grade device and may not be suitable for high-reliability or safety-critical applications. For such applications, consider using a device with a higher reliability rating, such as automotive or industrial-grade devices.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI6C39X0202XECIEX Overview

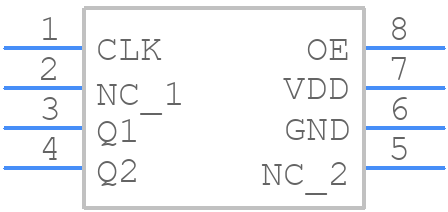

Use the download button to access the PI6C39X0202XECIEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI6C3,
or try a keyword search, such as Clock Drivers
