A good PCB layout for the PI6C49CB01Q2WEX involves keeping the input and output traces short and wide, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure proper power-up and initialization, make sure to follow the recommended power-up sequence, which is to apply VCC before applying VIN. Also, ensure that the input voltage is within the recommended range, and that the device is properly decoupled.
The PI6C49CB01Q2WEX has a maximum junction temperature of 150°C. To ensure reliable operation, keep the device within the recommended operating temperature range, and use thermal vias and heat sinks if necessary to dissipate heat.
To troubleshoot issues with the PI6C49CB01Q2WEX, start by checking the power supply and input voltage, then verify the clock signal and output voltage. Use an oscilloscope to check for noise and jitter, and consult the datasheet and application notes for guidance.
Yes, the PI6C49CB01Q2WEX is a high-frequency device and requires proper EMI and EMC design considerations. Use shielding, filtering, and grounding techniques to minimize electromagnetic interference and ensure compliance with regulatory standards.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI6C49CB01Q2WEX Overview

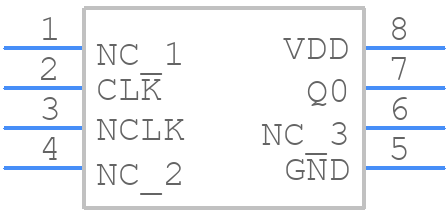

Use the download button to access the PI6C49CB01Q2WEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI6C4,
or try a keyword search, such as Level Translators
