Diodes Incorporated provides a recommended PCB layout in their application note AN-114, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The PI6C49CB04BQ3WEX requires a controlled power-on sequence to prevent damage. Diodes Incorporated recommends a power-on sequence of VCC first, followed by VTT, and then input signals. A power-off sequence of input signals first, followed by VTT, and then VCC is also recommended.
The PI6C49CB04BQ3WEX has an operating temperature range of -40°C to +85°C, but it's recommended to operate within -20°C to +70°C for optimal performance and reliability.
The PI6C49CB04BQ3WEX has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing, such as using an ESD wrist strap or mat, and storing the devices in anti-static packaging.
Diodes Incorporated recommends a clock signal with a rise time of less than 1ns and a fall time of less than 1ns to ensure proper operation of the PI6C49CB04BQ3WEX. Additionally, the clock signal should be terminated with a 50Ω resistor to prevent reflections.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI6C49CB04BQ3WEX Overview

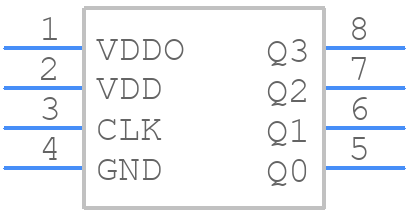

Use the download button to access the PI6C49CB04BQ3WEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI6C4,
or try a keyword search, such as Clock Drivers
