A good PCB layout for the PI6C49X0206TLIE involves keeping the power and ground planes as close as possible to the device, using a solid ground plane, and minimizing the length of the power and ground traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper power-on and power-off sequencing, it's recommended to power on the VCC pin first, followed by the VIN pin. When powering off, reverse the sequence. Additionally, it's recommended to use a soft-start circuit to limit the inrush current during power-on.
The PI6C49X0206TLIE has a thermal junction-to-ambient thermal resistance of 30°C/W. To ensure reliable operation, it's recommended to keep the device temperature below 125°C. This can be achieved by using a heat sink, improving airflow, and reducing the ambient temperature.
To troubleshoot issues with the PI6C49X0206TLIE, start by checking the power supply voltage, ensuring it's within the recommended range. Next, verify the input and output voltage levels, and check for any signs of overheating. If issues persist, consult the datasheet and application notes for guidance.
To minimize EMI and EMC issues, it's recommended to use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead on the input and output lines. Additionally, ensure the PCB layout is optimized for EMI reduction.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI6C49X0206TLIE Overview

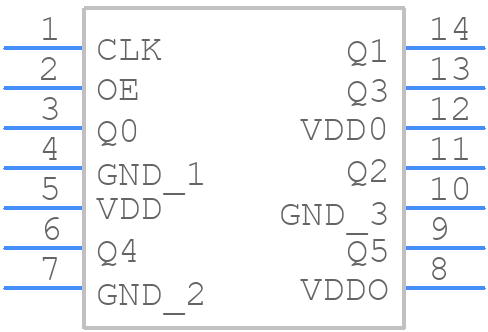

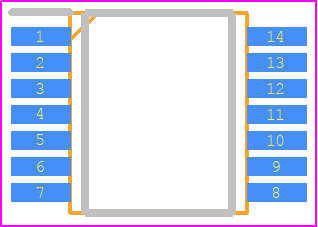

Use the download button to access the PI6C49X0206TLIE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI6C4,
or try a keyword search, such as Clock Drivers
