A good PCB layout for the PI6C557-05LEX involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure proper powering and decoupling, connect a 10uF capacitor between the VCC pin and the GND pin, and a 0.1uF capacitor between the VCC pin and the GND pin. Place these capacitors as close to the device as possible.
The PI6C557-05LEX can operate up to 200MHz, but the maximum frequency of operation depends on the specific application and the quality of the PCB layout. It's recommended to consult with a Diodes Incorporated application engineer for specific guidance.
The PI6C557-05LEX has a thermal pad on the bottom of the package. To handle thermal management, ensure good thermal conductivity between the thermal pad and the PCB, and consider using thermal vias or a heat sink if the device is expected to dissipate significant power.
The PI6C557-05LEX has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. For latch-up prevention, ensure that the device is powered up and down slowly, and avoid voltage spikes or transients on the power supply lines.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI6C557-05LEX Overview

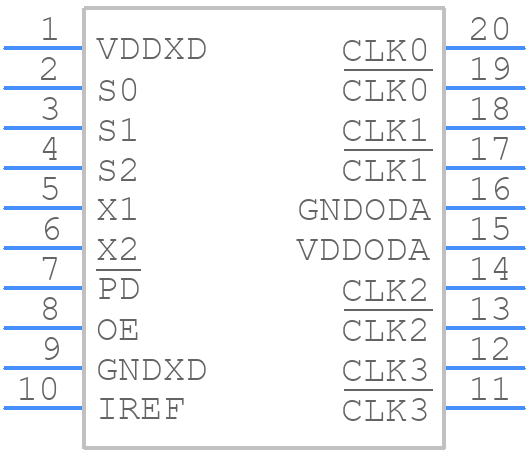

Use the download button to access the PI6C557-05LEX schematic symbol, PCB footprint, and 3D model.
