A good PCB layout for PI6CB18200ZDIEX involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure signal integrity with PI6CB18200ZDIEX, use controlled impedance traces, minimize trace lengths, and avoid vias and stubs. Also, use a common mode filter or a differential filter to reduce electromagnetic interference (EMI).
The maximum operating temperature range for PI6CB18200ZDIEX is -40°C to 85°C. However, the device can be operated at a reduced performance level up to 100°C, but this is not recommended for long-term reliability.
Yes, PI6CB18200ZDIEX is designed to withstand high-vibration environments. However, it's essential to ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress and damage.
To troubleshoot issues with PI6CB18200ZDIEX, start by checking the power supply voltage, signal integrity, and PCB layout. Use oscilloscopes and logic analyzers to debug the signals. Also, consult the datasheet and application notes for guidance on troubleshooting common issues.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI6CB18200ZDIEX Overview

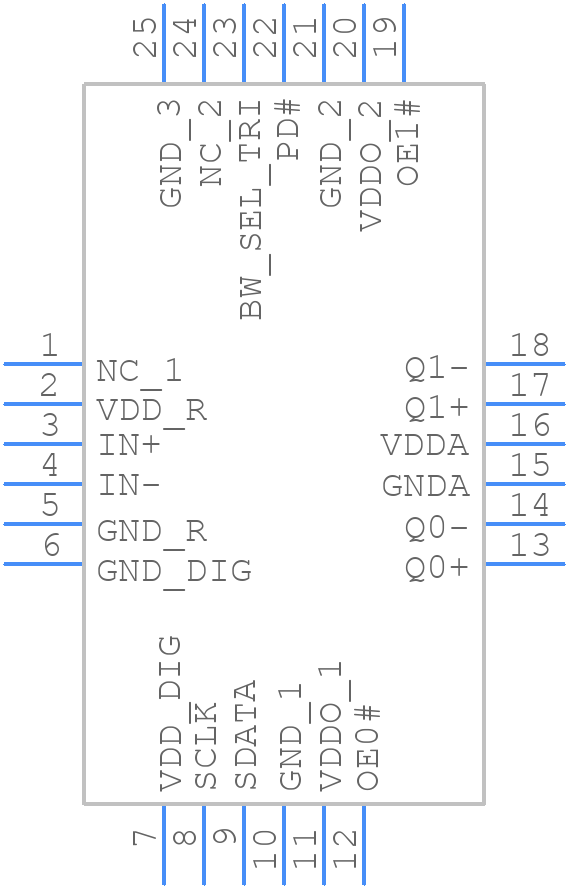

Use the download button to access the PI6CB18200ZDIEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI6CB,
or try a keyword search, such as Clock Drivers
