PI6CBF18501ZLAIEX footprint, schematic symbol and 3D model by Diodes Incorporated

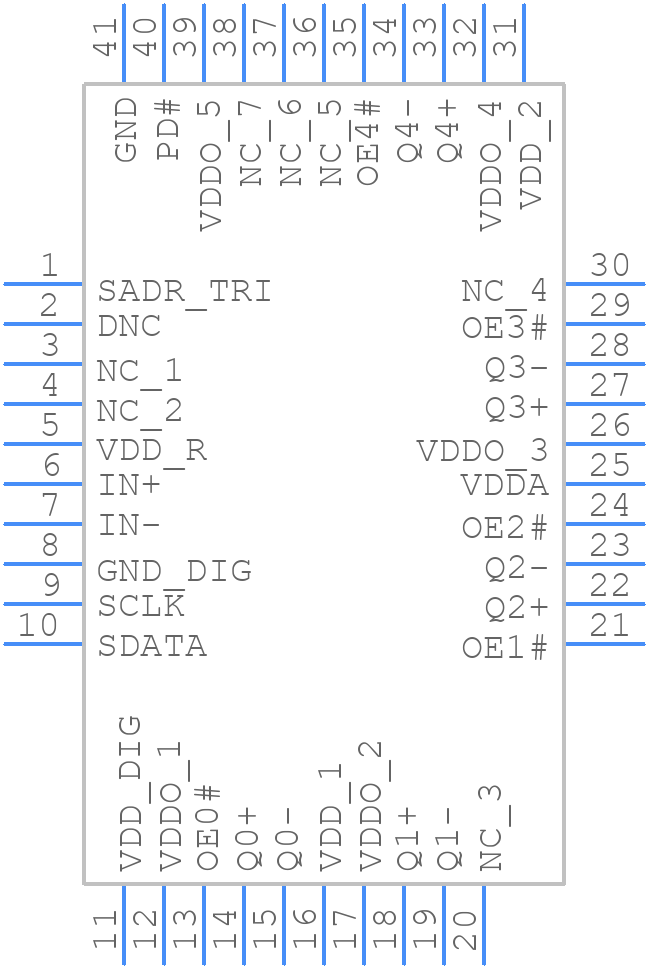

Symbol

PCB Footprints

3D Models

PI6CBF18501ZLAIEX Details

Diodes Incorporated recommends a 4-layer PCB with a solid ground plane, and to keep the signal traces as short as possible to minimize signal degradation. Additionally, it's recommended to use a 50Ω impedance-controlled trace for the clock signal.
To ensure signal integrity, it's recommended to use a signal integrity analysis tool to simulate the signal transmission and identify potential issues. Additionally, use a clock signal with a rise time of less than 1ns, and ensure that the signal traces are properly terminated to minimize reflections.
The maximum operating temperature range for PI6CBF18501ZLAIEX is -40°C to 85°C. However, it's recommended to operate the device within the industrial temperature range of -40°C to 70°C for optimal performance and reliability.
Diodes Incorporated recommends using a human body model (HBM) ESD protection device with a minimum rating of 2kV to protect the PI6CBF18501ZLAIEX from electrostatic discharge. Additionally, it's recommended to follow proper handling and storage procedures to prevent ESD damage.
Diodes Incorporated recommends using a 10uF ceramic capacitor with a 0.1uF ceramic capacitor in parallel, placed as close as possible to the power pins of the PI6CBF18501ZLAIEX. This helps to filter out noise and ensure stable power supply operation.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the PI6CBF18501ZLAIEX schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like PI6CB, or try a keyword search, such as Clock Drivers
