A good PCB layout for the PI6CG18201ZDIEX involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure proper power-on and power-off sequencing, the PI6CG18201ZDIEX requires a controlled power-up and power-down sequence. The recommended sequence is to power up the VCCIO pin first, followed by the VCC pin, and then the VIN pin. During power-down, the sequence should be reversed.
The PI6CG18201ZDIEX has a maximum junction temperature of 150°C. To ensure reliable operation, the device should be mounted on a PCB with a thermal pad connected to a solid ground plane. A heat sink or thermal interface material can be used to improve heat dissipation.
The PI6CG18201ZDIEX has built-in ESD protection, but additional protection measures can be taken to prevent damage from electrostatic discharge. These include using ESD-protective packaging, handling the device with ESD-protective equipment, and implementing ESD-protection circuits in the system design.
For high-reliability applications, it is recommended to follow a robust design and testing process, including environmental testing, burn-in, and accelerated life testing. Additionally, the device should be operated within its recommended operating conditions, and a thorough failure modes and effects analysis (FMEA) should be performed.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI6CG18201ZDIEX Overview

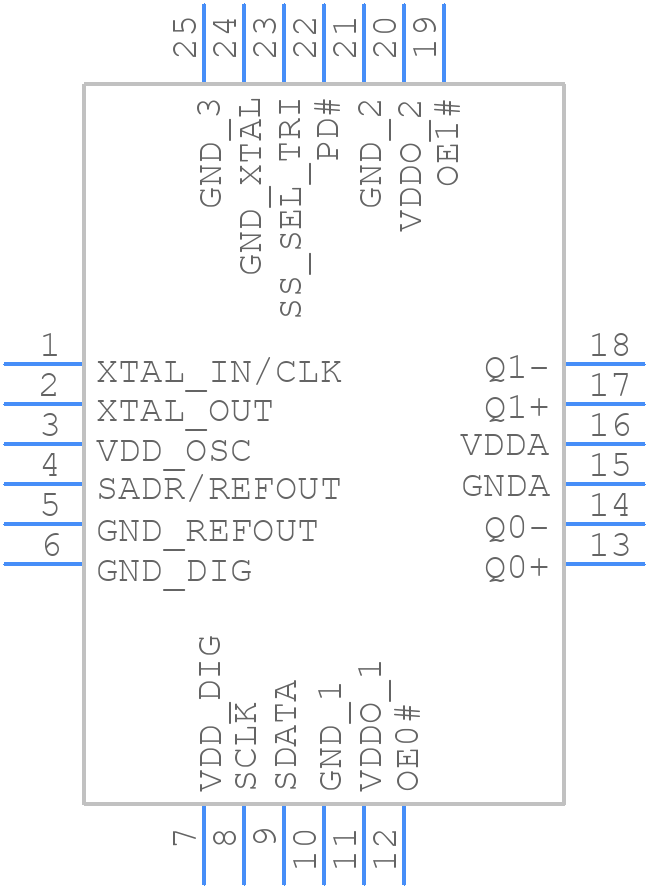

Use the download button to access the PI6CG18201ZDIEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI6CG,
or try a keyword search, such as Clock Generators
