A good PCB layout for the PI6CG33201CZDIEX involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure proper power-on and power-off sequencing, the PI6CG33201CZDIEX requires a controlled power-up and power-down sequence. The recommended sequence is to power up the VCC pin first, followed by the VIN pin, and then the EN pin. During power-down, the sequence should be reversed.
The PI6CG33201CZDIEX has a maximum junction temperature of 150°C. To ensure reliable operation, the device should be mounted on a PCB with a thermal pad connected to a solid ground plane. A thermal interface material can be used to improve heat transfer between the device and the PCB.
To troubleshoot issues with the PI6CG33201CZDIEX, start by verifying the power supply voltage and sequence. Check for proper decoupling and bypassing, and ensure that the input and output traces are properly routed. Use an oscilloscope to check for signal integrity and noise issues.
Yes, the PI6CG33201CZDIEX is a sensitive device and requires proper ESD precautions during handling and assembly. Use an ESD wrist strap or mat, and ensure that all equipment and tools are properly grounded. Avoid touching the device pins or handling the device in a way that could generate static electricity.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI6CG33201CZDIEX Overview

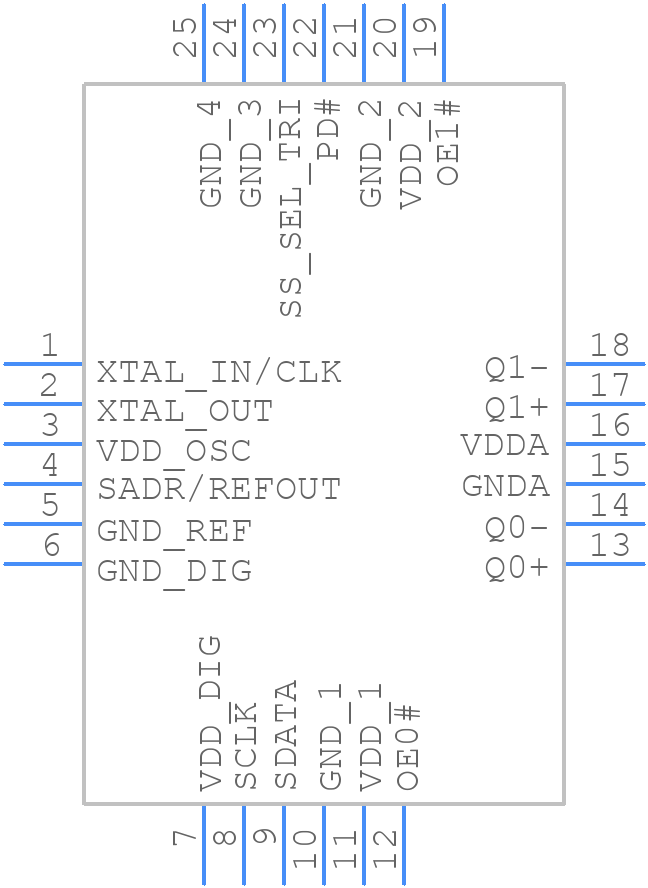

Use the download button to access the PI6CG33201CZDIEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI6CG,
or try a keyword search, such as Clock Generators
