A good PCB layout for the PI6ULS5V9617CUEX would involve keeping the input and output traces as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
To ensure proper power-on and power-off sequencing, it's recommended to follow the power-up and power-down sequences outlined in the datasheet. Additionally, it's important to ensure that the input voltage is stable and within the recommended operating range before applying power to the device.
The PI6ULS5V9617CUEX has a maximum junction temperature of 150°C. To ensure reliable operation, it's recommended to keep the device temperature below 125°C. This can be achieved by using a heat sink, improving airflow, and reducing power consumption.
To troubleshoot issues with the PI6ULS5V9617CUEX, start by checking the power supply voltage, input signals, and output signals using an oscilloscope. Verify that the device is properly powered on and that the input signals are within the recommended operating range. If issues persist, consult the datasheet and application notes for troubleshooting guidelines.
Yes, the PI6ULS5V9617CUEX is a sensitive device and requires proper ESD precautions during handling and assembly. It's recommended to use an ESD wrist strap, ESD mat, and ESD-safe packaging to prevent damage to the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI6ULS5V9617CUEX Overview

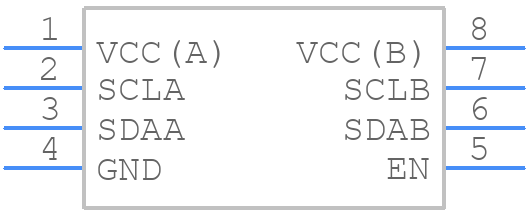

Use the download button to access the PI6ULS5V9617CUEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI6UL,
or try a keyword search, such as Level Translators
