The PI7C9X118SLFDE can operate from -40°C to 85°C, making it suitable for industrial and commercial applications.
To ensure signal integrity, it's recommended to use a signal integrity analysis tool to simulate the signal transmission and optimize the PCB layout, taking into account the device's signal propagation delay and skew.
Yes, the PI7C9X118SLFDE is a PCIe Gen3 switch, making it suitable for PCIe applications. However, it's essential to ensure that the device is configured correctly and that the system meets the PCIe specification requirements.
The PI7C9X118SLFDE has a typical power consumption of 2.5W, making it suitable for power-sensitive applications. However, the actual power consumption may vary depending on the operating conditions and configuration.
The device can be configured using the SPI interface. It's recommended to refer to the datasheet and application notes for specific configuration guidelines and optimal performance settings.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI7C9X118SLFDE Overview

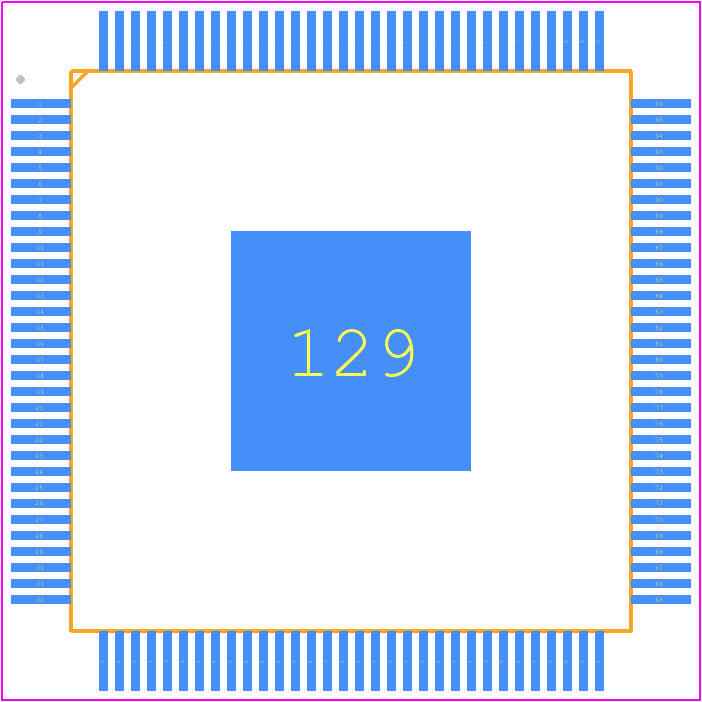

Use the download button to access the PI7C9X118SLFDE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI7C9,
or try a keyword search, such as Bus Controllers
