For optimal performance, it is recommended to follow the PCB layout guidelines provided in the datasheet, including keeping the signal traces short and away from power planes, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, ensure good thermal management by providing adequate heat dissipation paths and avoiding thermal vias under the device.
To ensure proper operation, it is recommended to follow a controlled power-up and power-down sequence. Power up the VCC supply first, followed by the VREF supply. During power-down, reverse the sequence. Additionally, ensure that the input signals are stable and within the recommended voltage range before applying power to the device.
The built-in termination resistors are designed to provide a specific impedance match for high-speed signals. However, they may not be suitable for all applications, especially those requiring custom impedance matching or high-frequency signal termination. In such cases, external termination resistors may be necessary to achieve optimal signal integrity.
To troubleshoot signal integrity issues, start by verifying the PCB layout and ensuring that it meets the recommended guidelines. Check for signal reflections, ringing, and crosstalk using an oscilloscope or signal analyzer. Also, verify that the input signals are within the recommended voltage range and that the device is properly powered and terminated.
Yes, the PI7C9X2G304SLBFDEX has built-in ESD protection, but it is still important to follow proper ESD handling and storage procedures to prevent damage. Ensure that the device is handled in an ESD-controlled environment, and use ESD-protective packaging and materials during storage and transportation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI7C9X2G304SLBFDEX Overview

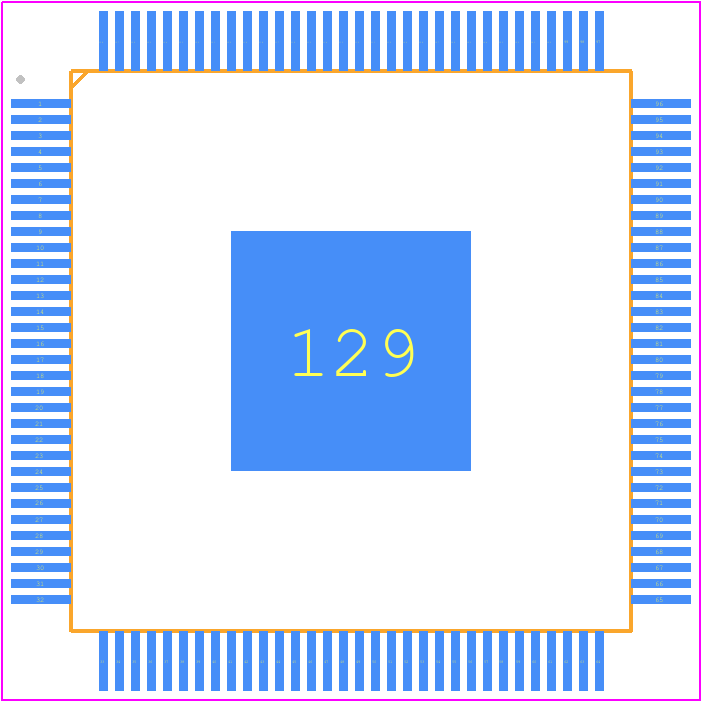

Use the download button to access the PI7C9X2G304SLBFDEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI7C9,
or try a keyword search, such as Bus Controllers
