PI7C9X2G404SLBFDEX footprint, schematic symbol and 3D model by Diodes Incorporated

Symbol

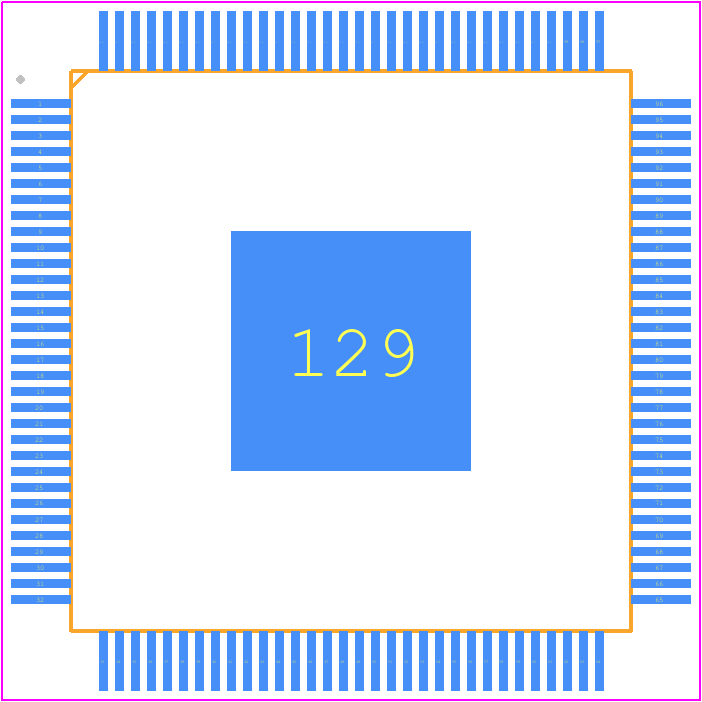

PCB Footprints

3D Models

PI7C9X2G404SLBFDEX Details

The PI7C9X2G404SLBFDEX can operate from -40°C to 85°C (industrial temperature range) and -40°C to 125°C (extended temperature range) with reduced performance.
To ensure signal integrity, use controlled impedance traces, minimize trace lengths, and use termination resistors as needed. Also, follow the recommended PCB layout guidelines and use a solid ground plane to reduce noise and EMI.
The recommended power-up sequence is to apply VCC first, followed by VTT and then the input signals. This ensures that the device is properly initialized and minimizes the risk of latch-up or damage.
To handle hot-swapping or live insertion, use a hot-swap controller or a power sequencer to ensure that the device is powered up and down safely. Also, use TVS diodes or other protection devices to prevent voltage spikes and ESD damage.
Follow the recommended PCB layout and routing guidelines in the datasheet, including using a solid ground plane, minimizing trace lengths, and using controlled impedance traces. Also, use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the PI7C9X2G404SLBFDEX schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like PI7C9, or try a keyword search, such as Bus Controllers
