PI7C9X2G606PRDNJAEX Frequently Asked Questions (FAQs)

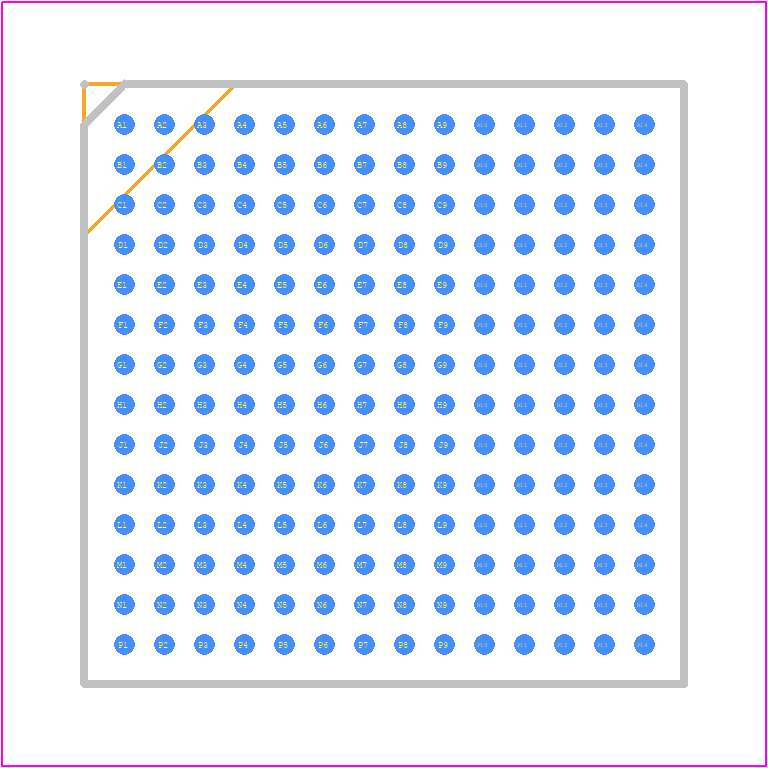

• What is the recommended PCB layout for optimal performance?
  A good PCB layout for the PI7C9X2G606PRDNJAEX should have a solid ground plane, short traces, and decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
• How do I ensure signal integrity with this device?
  To ensure signal integrity, use controlled impedance traces, keep signal traces short and away from noise sources, and use termination resistors as needed. Also, use a common clock and strobe signals to reduce skew and ensure data validity.
• What are the thermal considerations for this device?
  The PI7C9X2G606PRDNJAEX has a junction-to-ambient thermal resistance of 30°C/W. Ensure good airflow, use a heat sink if necessary, and avoid blocking airflow around the device to prevent overheating.
• How do I handle power sequencing with this device?
  Power sequencing is critical for the PI7C9X2G606PRDNJAEX. Ensure that the core voltage (VCC) is powered up before the I/O voltage (VCCIO), and that the device is fully powered up before applying clock and input signals.
• What are the ESD protection considerations for this device?
  The PI7C9X2G606PRDNJAEX has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that all equipment is properly grounded.
