PI7C9X2G608GPBNJEX - Diodes Incorporated

Description: PCI Interface IC 6 Ports 8Lanes PCIE2 Packet Switch

Download PI7C9X2G608GPBNJEX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

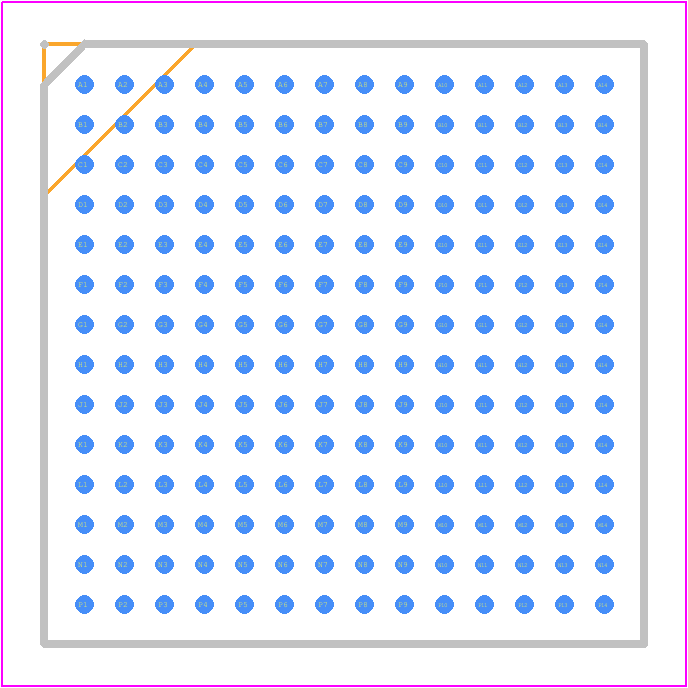

PI7C9X2G608GPBNJEX - Diodes Incorporated PCB footprint - BGA - BGA - 196-Ball LBGA
click to zoom
3D Models
PI7C9X2G608GPBNJEX - Diodes Incorporated  - 3D model - BGA - 196-Ball LBGA
click to zoom

PI7C9X2G608GPBNJEX Details

  • Manufacturer Part Number:

    PI7C9X2G608GPBNJEX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LBGA-196

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    8

  • Bus Compatibility:

    I2C; PCI; SMBUS

  • Clock Frequency-Max:

    100 MHz

  • Data Transfer Rate-Max:

    625 MBps

  • JESD-30 Code:

    S-PBGA-B196

  • Length:

    15 mm

  • Number of Terminals:

    196

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LBGA

  • Package Equivalence Code:

    BGA196,14X14,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE

  • Packing Method:

    TR

  • Seated Height-Max:

    1.5 mm

  • Supply Voltage-Max:

    1.1 V

  • Supply Voltage-Min:

    0.95 V

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    15 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, PCI

PI7C9X2G608GPBNJEX Frequently Asked Questions (FAQs)

  • The PI7C9X2G608GPBNJEX has an operating temperature range of -40°C to 85°C.
  • To ensure signal integrity, it's recommended to follow the PCB layout guidelines provided in the datasheet, use a solid ground plane, and minimize trace lengths and vias.
  • While the PI7C9X2G608GPBNJEX is designed for PCIe applications, it can be used in other high-speed applications with proper design and validation. However, it's essential to consult with Diodes Incorporated's support team to ensure the device meets the specific application requirements.
  • The recommended power sequencing for the PI7C9X2G608GPBNJEX is to power up the 3.3V supply first, followed by the 1.8V supply, and then the 1.2V supply. Power down in the reverse order.
  • To troubleshoot issues with the PI7C9X2G608GPBNJEX, start by reviewing the datasheet and application notes, checking the power supply and clocking, and using diagnostic tools such as oscilloscopes and logic analyzers to identify signal integrity issues.
